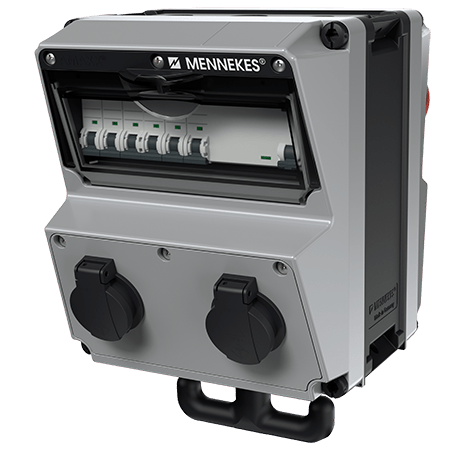

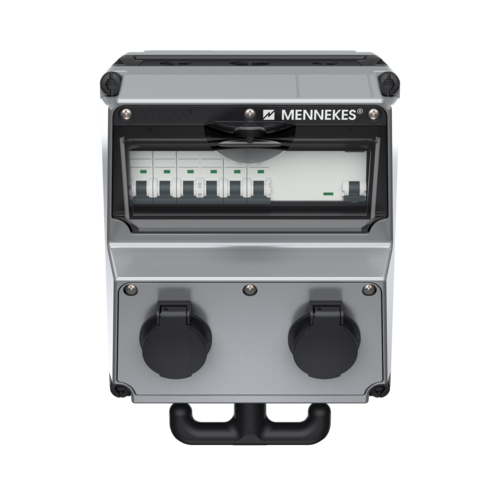

MENNEKES AMAXX receptacle combination 970001SI
MENNEKES AMAXX receptacle combination 970001SI images3d

Please accept marketing-cookies to watch this video.

Video varieties

AMAXX receptacle combination 970001SI

CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • with suspension eyes on top, grip hooks on the bottom and chain set provided
  • Part no.970001SI
  • EAN4015394271543
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX receptacle combination 970001SI

CEE 32 A, 5 p, 400 V 1
CEE 16 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 4
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
  • 1 MCB 32 A, 3 p, C
  • 1 MCB 16 A, 3 p, C
  • 4 MCB´s 16 A, 1 p, C
Pre-fuse max. 40 A
InA 40 A
RDF 0.75
Connection/feeder cable
  • for 1 cable up to 5 x 10 mm²
Protection type IP44
Enclosure material Plastic
Weight 5800 g
Height 260 mm
Width 225 mm
Storage receptacle combination D

Videos

AMAXX receptacle combination 970001SI

Please accept marketing-cookies to watch this video.

Video varieties

Directives

AMAXX receptacle combination 970001SI

Frequently asked questions about the product

Can I order partially wired receptacle combinations from MENNNEKES?

We are offering fully wired receptacle combinations in compliance with IEC 61439. The party completing a partially wired receptacle combination becomes the manufacturer who is thus under obligation to test the receptacle combination in accordance with IEC 61439.

Can I make changes to the receptacle combination or extend it?

Making a modification to the receptacle combination will make you the manufacturer of the product and you will have to assume full liability for the product.

Are receptacle combinations from MENNEKES tested and approved by the VDE institute (or equivalent body)?

Receptacle combinations from MENNEKES can be subject to various product standards. Usually, we manufacture product series in accordance with IEC 61439, IEC 60309 and VDE 0620.
