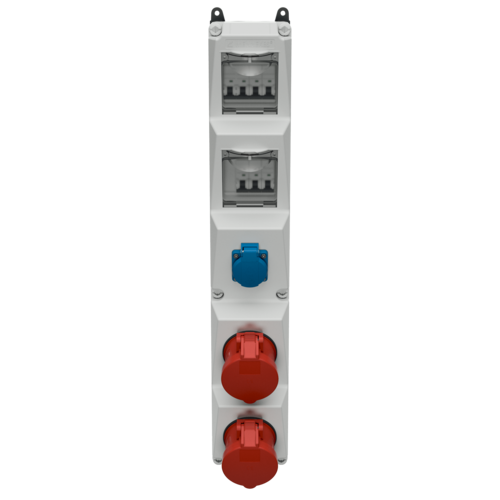

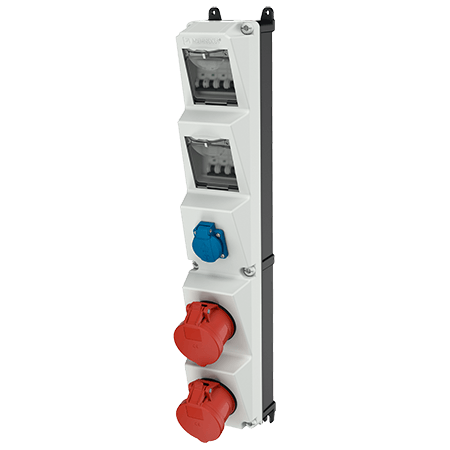

MENNEKES AMAXX s receptacle combination 960014
MENNEKES AMAXX s receptacle combination 960014 images3d

Please accept marketing-cookies to watch this video.

Video varieties

AMAXX s receptacle combination 960014

With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

CEE 32 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Part no.960014
  • EAN4015394243434
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX s receptacle combination 960014

CEE 32 A, 5 p, 400 V 2
SCHUKO® 16 A, 230 V 1
Fusing
  • 2 MCB´s 32 A, 3 p, C
  • 1 MCB 16 A, 1 p, C
Pre-fuse max. 63 A
InA 52 A
RDF 0.65
Connection/feeder cable
  • for 1 cable up to 5 x 10 mm²
Protection type IP44
Enclosure material Plastic
Weight 4040 g
Height 650 mm
Width 112.5 mm
Storage receptacle combination D

Videos

AMAXX s receptacle combination 960014

Please accept marketing-cookies to watch this video.

Video varieties

Directives

AMAXX s receptacle combination 960014

Appropriate accessories

AMAXX s receptacle combination 960014

MENNEKES AMAXX® screw set consisting 990606

AMAXX® screw set consisting

Part no. 990606

consisting of 4 screws 6 x 70 mm Pozidrive size 3, steel galvanized and 4 dowels 8 x 50 mm, for concrete, porous concrete, solid brick, perforated brick

MENNEKES Cable gland 990607

Cable gland

Part no. 990607

black RAL 9005, M20 for cable from 6 - 13 mm part no. 990607, M32 for cable from 13 - 21 mm part no. 990608, M40 for cable from 14 - 28 mm part no. 990609

MENNEKES AMAXX® s fixing set 990620

AMAXX® s fixing set

Part no. 990620

for lateral installation of AMAXX® s combinations, optional right or left hand side fixing (twin set for 1 combination unit)

Frequently asked questions about the product

Can I order partially wired receptacle combinations from MENNNEKES?

We are offering fully wired receptacle combinations in compliance with IEC 61439. The party completing a partially wired receptacle combination becomes the manufacturer who is thus under obligation to test the receptacle combination in accordance with IEC 61439.

Can I make changes to the receptacle combination or extend it?

Making a modification to the receptacle combination will make you the manufacturer of the product and you will have to assume full liability for the product.

Are receptacle combinations from MENNEKES tested and approved by the VDE institute (or equivalent body)?

Receptacle combinations from MENNEKES can be subject to various product standards. Usually, we manufacture product series in accordance with IEC 61439, IEC 60309 and VDE 0620.
