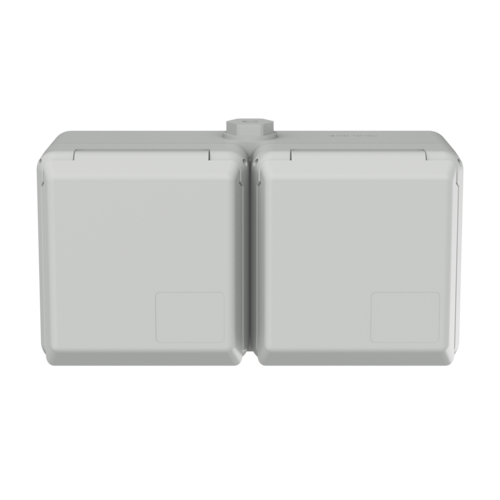

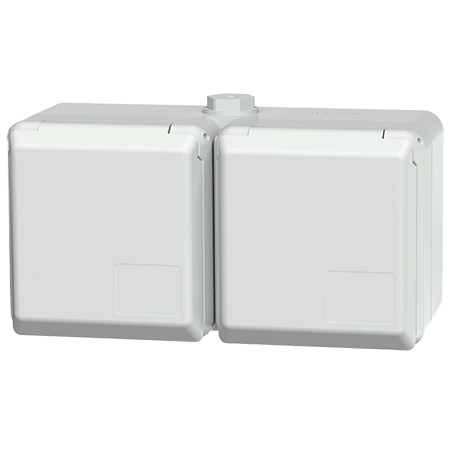

Cepex double receptacle, grey 4226

Poles
Voltage
Clock position
  • screw terminals
  • cable entry: 1 x M 20 plugged at top, 2 x M 25 to be cut out at the bottom, 2 x M 20 to be cut out at the back side, for cables 7 up to 13 mm Ø
  • Part no.4226
  • EAN4015394205630
  • Std. Pack. 5 Qty.

Technical specifications

Cepex double receptacle, grey 4226

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP 44
Shutter No
Weight 745 g
