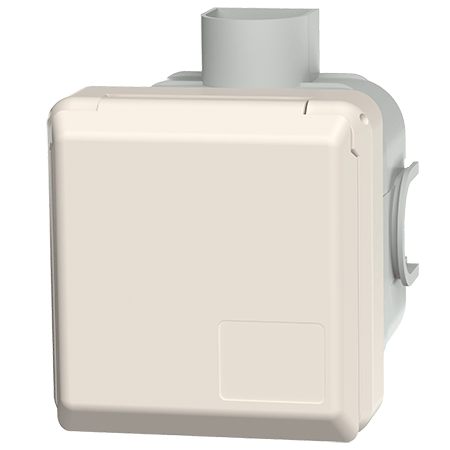

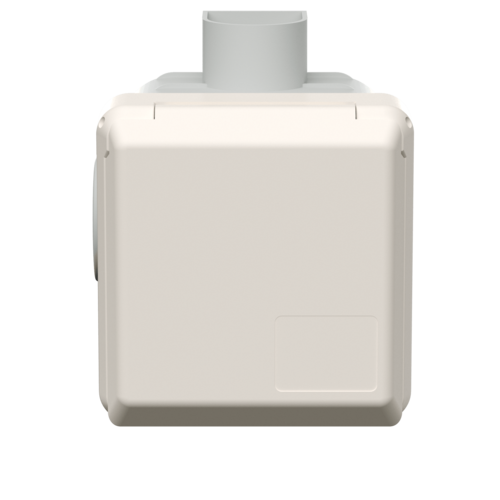

Cepex flush mounted receptacle 4123

Poles
Voltage
Clock position
  • screw terminals
  • with flush mounted installation box
  • meeting DIN 18032 standards for ball rebound
  • Part no.4123
  • EAN4015394021681
  • Std. Pack. 5 Qty.

Technical specifications

Cepex flush mounted receptacle 4123

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP 44
Shutter No
Weight 270 g
Declaration of Conformity CN,CQC
