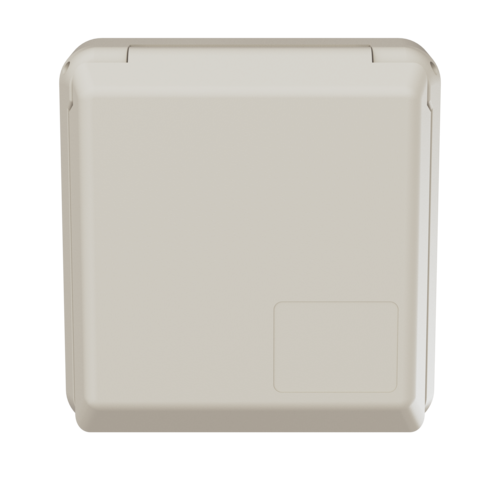

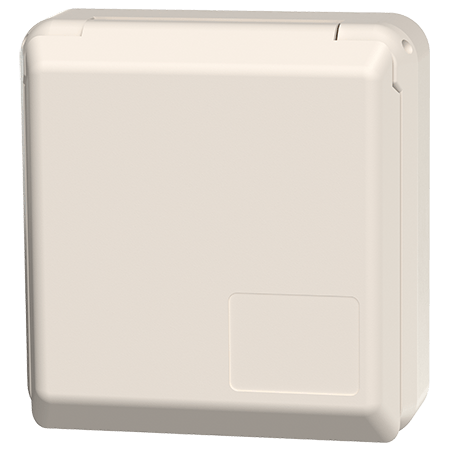

MENNEKES Cepex grounding-type panel mounted receptacle 4901
MENNEKES Cepex grounding-type panel mounted receptacle 4901 images3d

Cepex grounding-type panel mounted receptacle 4901

Ampere 16 A
Poles
Voltage
  • french-belgian standard
  • screw terminals
  • for installation in cable ducts and collumns
  • meeting DIN 18032 standards for ball rebound
  • Part no.4901
  • EAN4015394231189
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex grounding-type panel mounted receptacle 4901

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Hertz 50-60 Hz
Protection type IP44
Shutter Yes
Weight 140 g
Certifications EAC

Directives

Cepex grounding-type panel mounted receptacle 4901

Appropriate accessories

Cepex grounding-type panel mounted receptacle 4901

MENNEKES Spacer frame 4192

Spacer frame

Part no. 4192

to compensate for unequal heights, matching all Cepex surface mounted receptacles (Data, SCHUKO®, 16 A and 32 A)

MENNEKES Flush mounted installation box 41404

Flush mounted installation box

Part no. 41404

for Cepex CEE receptacles 16 A and 32 A and Cepex receptacles SCHUKO®, can be combined with all Cepex panel mounted receptacles

MENNEKES Cepex masking frame 41408

Cepex masking frame

Part no. 41408

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles for horizontal installation of two receptacles

MENNEKES Cepex masking frames 41406

Cepex masking frames

Part no. 41406

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles
