MENNEKES

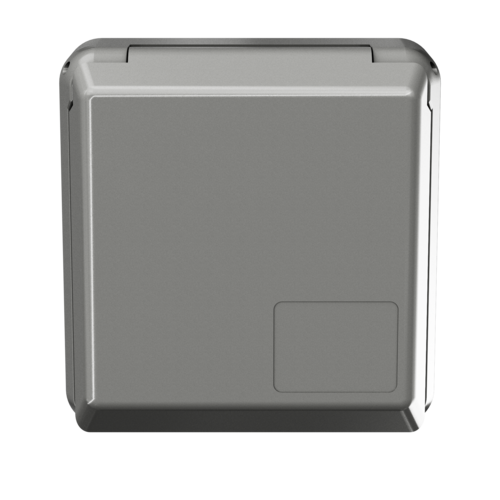

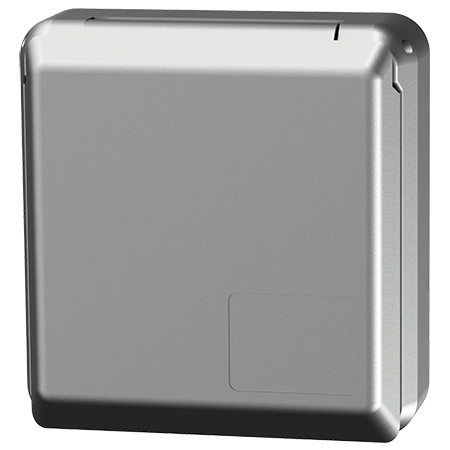

MENNEKES Cepex grounding-type panel mounted receptacle 4904
MENNEKES Cepex grounding-type panel mounted receptacle 4904 images3d

Cepex grounding-type panel mounted receptacle 4904

Ampere 16 A
Poles
Voltage
  • french-belgian standard
  • screw terminals
  • for installation in cable ducts and collumns
  • meeting DIN 18032 standards for ball rebound
  • Part no.4904
  • EAN4015394231202
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex grounding-type panel mounted receptacle 4904

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Hertz 50-60 Hz
Protection type IP44
Shutter Yes
Weight 140 g
Certifications EAC

Directives

Cepex grounding-type panel mounted receptacle 4904

Appropriate accessories

Cepex grounding-type panel mounted receptacle 4904

MENNEKES Flush mounted installation box 41404

Flush mounted installation box

Part no. 41404

for Cepex CEE receptacles 16 A and 32 A and Cepex receptacles SCHUKO®, can be combined with all Cepex panel mounted receptacles
