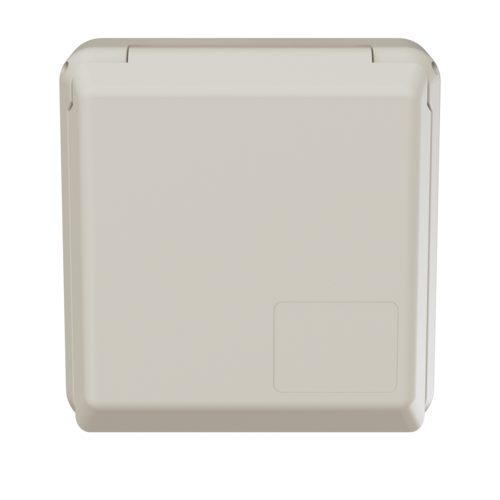

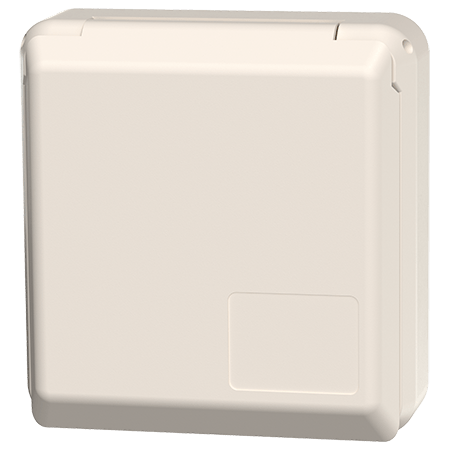

Cepex panel mounted receptacle 4115

Poles
Voltage
Clock position
  • screw terminals
  • also suitable for installation in cable ducts and columns
  • meeting DIN 18032 standards for ball rebound
  • Part no.4115
  • EAN4015394021544
  • Std. Pack. 5 Qty.

Technical specifications

Cepex panel mounted receptacle 4115

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP 44
Shutter No
Weight 187 g
Declaration of Conformity VDE
EAC
CQC

Appropriate accessories

Cepex panel mounted receptacle 4115

Spacer frame

Part no. 4192

to compensate for unequal heights, matching all Cepex surface mounted receptacles SCHUKO® as well as all Cepex CEE surface mounted 16 A and 32 A receptacles

more

Cepex masking frame

Part no. 41408

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles for horizontal installation of two receptacles

more

Cepex masking frames

Part no. 41406

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles

more

Flush mounted installation box

Part no. 41404

for Cepex CEE receptacles 16 A and 32 A and Cepex receptacles SCHUKO®, can be combined with all Cepex panel mounted receptacles

more
