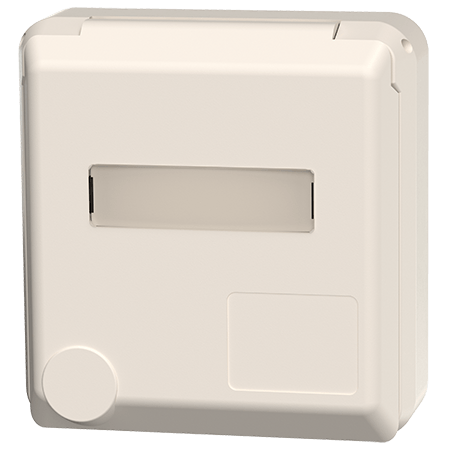

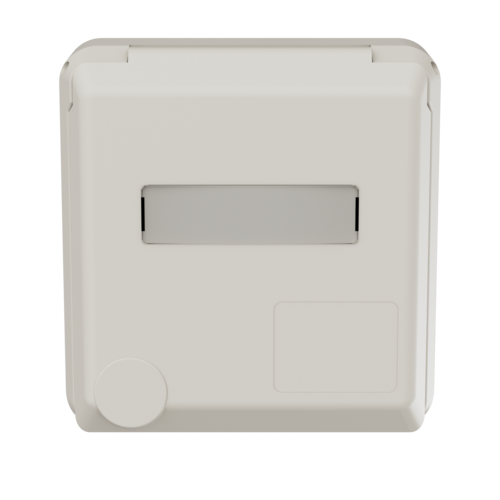

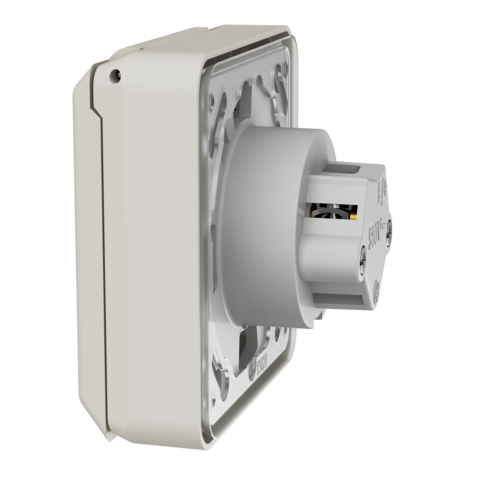

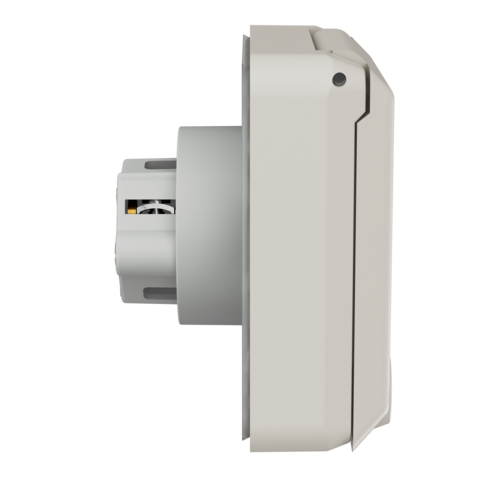

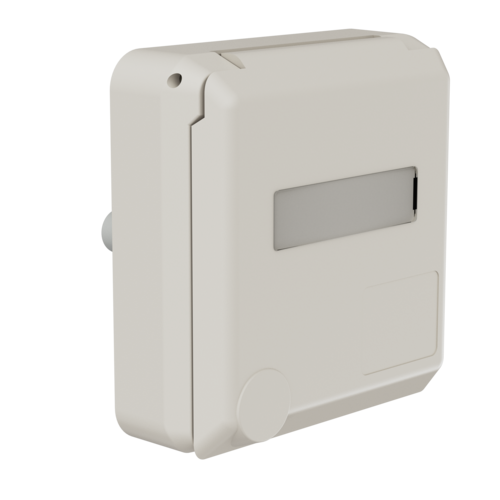

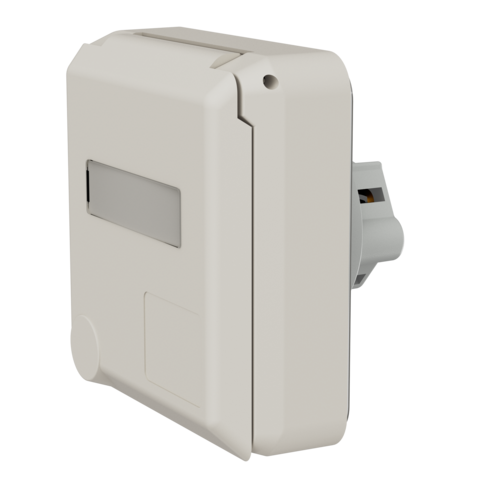

Cepex panel mounted receptacle 4142

Name: Cepex panel mounted receptacle
Brand: MENNEKES
SKU: 4142

Ampere 16 A 32 A

Poles

Voltage

Clock position

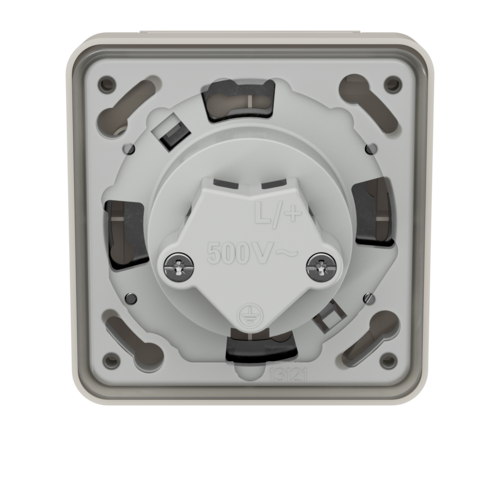

screw terminals
with labelling field

suitable for installation in cable ducts and columns

Part no.4142
EAN4015394021889
Std. Pack. 5

Technical specifications

Cepex panel mounted receptacle 4142

Ampere	16 A
Poles	3 p
Voltage	230 V
Clock position	6 h
Hertz	50-60 Hz
Protection type	IP44
Shutter	No
Weight	182 g
Certifications	EAC

Datasheets & Downloads

Cepex panel mounted receptacle 4142

Product infoCepex panel mounted receptacle 4142 PDF, 156 KB

Manufacturer‘s declarationCepex panel mounted receptacle 4142 PDF, 51 KB

CAD data STPCepex panel mounted receptacle 4142 ZIP, 284 KB

CAD data 3D DWGCepex panel mounted receptacle 4142 ZIP, 628 KB

Dimensional drawing portraitCepex panel mounted receptacle 4142 PNG, 77 KB

Dimensional drawing landscape formatCepex panel mounted receptacle 4142 PNG, 77 KB

Directives

Cepex panel mounted receptacle 4142

REACh

RoHS

Appropriate accessories

Cepex panel mounted receptacle 4142

Spacer frame

Part no. 4192

to compensate for unequal heights, matching all Cepex surface mounted receptacles (Data, SCHUKO®, 16 A and 32 A)

Spacer frame

Part no. 4239

to compensate for unequal heights, matching all Cepex surface mounted receptacles (Data, SCHUKO®, 16 A and 32 A)

Cepex masking frames

Part no. 41406

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles

Cepex masking frame

Part no. 41408

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles for horizontal installation of two receptacles

Spacer frame

Part no. 4191

to compensate for unequal heights, matching all Cepex surface mounted receptacles (Data, SCHUKO®, 16 A and 32 A)

Cepex masking frames

Part no. 41423

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles

Cepex masking frame

Part no. 41424

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles for horizontal installation of two receptacles

Flush mounted installation box

Part no. 41404

for Cepex CEE receptacles 16 A and 32 A and Cepex receptacles SCHUKO®, can be combined with all Cepex panel mounted receptacles
