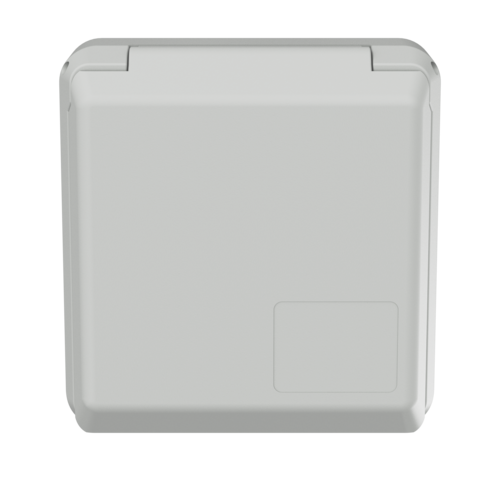

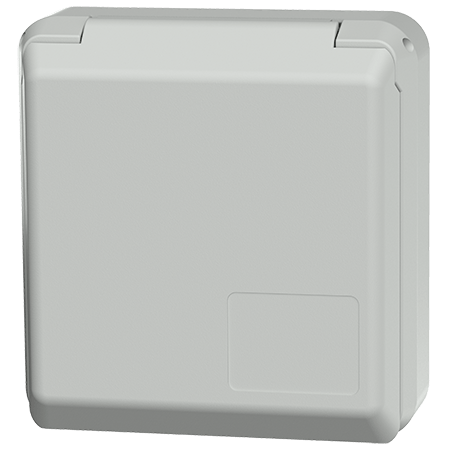

Cepex panel mounted receptacle 4212

Clock position
  • screw terminals
  • suitable for installation in cable ducts and columns
  • meeting DIN 18032 standards for ball rebound
  • Part no.4212
  • EAN4015394022633
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex panel mounted receptacle 4212

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP44
Shutter No
Weight 214 g
Declaration of Conformity EAC

Appropriate accessories

Cepex panel mounted receptacle 4212

Spacer frame

Part no. 4191

to compensate for unequal heights, matching all Cepex surface mounted receptacles SCHUKO® as well as all Cepex CEE surface mounted 16 A and 32 A receptacles

Flush mounted installation box

Part no. 41404

for Cepex CEE receptacles 16 A and 32 A and Cepex receptacles SCHUKO®, can be combined with all Cepex panel mounted receptacles

Cepex masking frames

Part no. 41407

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles


Part no. 41409

2-fach, passend zu allen Cepex-Unterputz-und Anbausteckdosen 16 A und 32 A, zur waagerechten Montage von zwei Steckvorrichtungen
