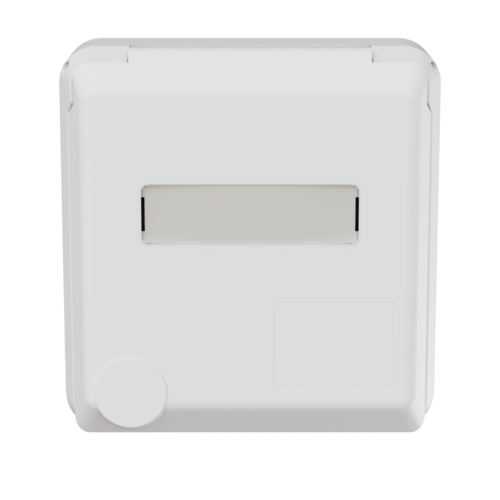

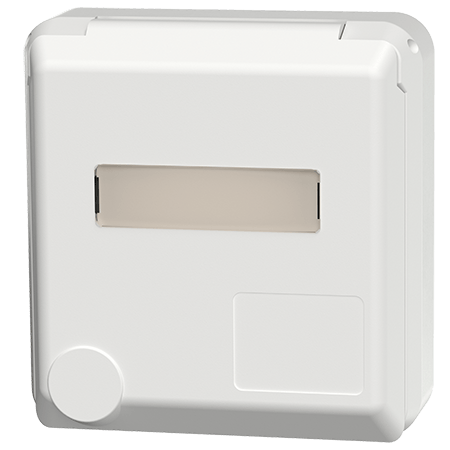

MENNEKES Cepex panel mounted receptacle 4273
MENNEKES Cepex panel mounted receptacle 4273 images3d

Cepex panel mounted receptacle 4273

Poles
Voltage
Clock position
  • screw terminals
  • with labelling field
  • suitable for installation in cable ducts and columns
  • Part no.4273
  • EAN4015394193470
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex panel mounted receptacle 4273

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP44
Shutter No
Weight 181 g
Certifications EAC

Directives

Cepex panel mounted receptacle 4273

Appropriate accessories

Cepex panel mounted receptacle 4273

MENNEKES Spacer frame 4239

Spacer frame

Part no. 4239

to compensate for unequal heights, matching all Cepex surface mounted receptacles SCHUKO® as well as all Cepex CEE surface mounted 16 A and 32 A receptacles

MENNEKES Flush mounted installation box 41404

Flush mounted installation box

Part no. 41404

for Cepex CEE receptacles 16 A and 32 A and Cepex receptacles SCHUKO®, can be combined with all Cepex panel mounted receptacles

MENNEKES Cepex masking frames 41423

Cepex masking frames

Part no. 41423

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles

MENNEKES Cepex masking frame 41424

Cepex masking frame

Part no. 41424

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles for horizontal installation of two receptacles
