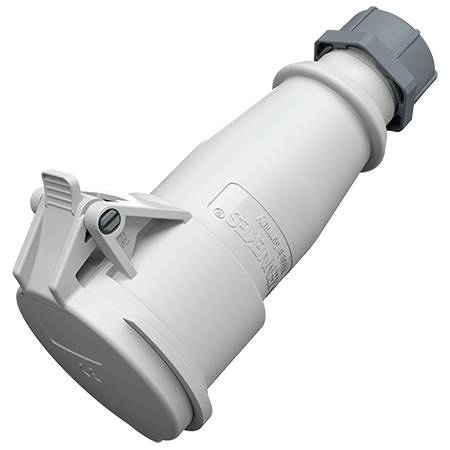

Connector 2185

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.2185
  • EAN4015394013693
  • Std. Pack. 10 Qty.

Technical specifications

Connector 2185

Ampere 16 A
Poles 3 p
Voltage 50-250 V
Clock position 3 h
Hertz (DC)
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 143 g
Declaration of Conformity DE,VDE
CN,CQC
