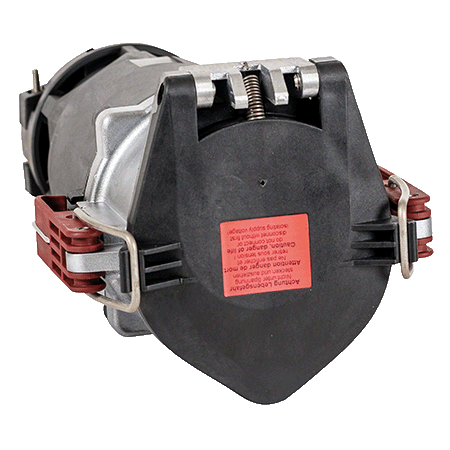

Connector 75211

Ampere 200 A
Clock position
  • screw terminals
  • with cable gland
  • seawater resistant products are available on request
  • if required, pilot cables can be introduced separately into plugs/ enclosures, please add PK to the part number
  • Part no.75211
  • EAN4015394055488
  • Std. Pack. 1 Qty.

Technical specifications

Connector 75211

Ampere 200 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Weight 3701 g
Declaration of Conformity EAC
