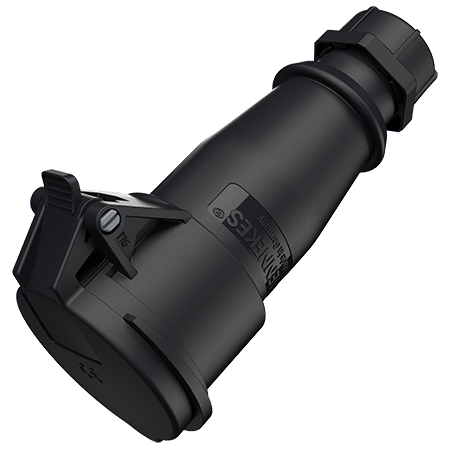

Connector AM-TOP 514SW

Clock position
  • single part body
  • with highly heat resistant contact carrier
  • cable gland and sealing
  • Part no.514SW
  • EAN4015394256953
  • Std. Pack. 10 Qty.

Technical specifications

Connector AM-TOP 514SW

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 202 g
