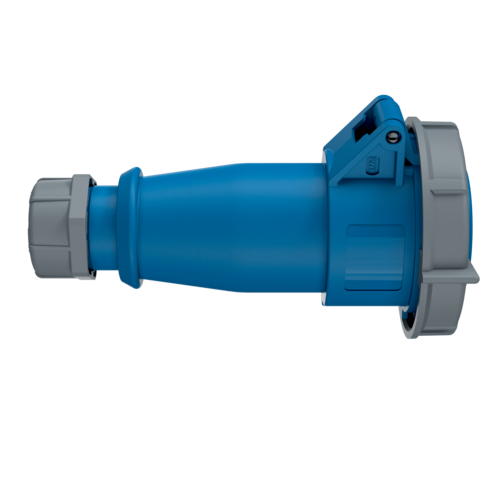

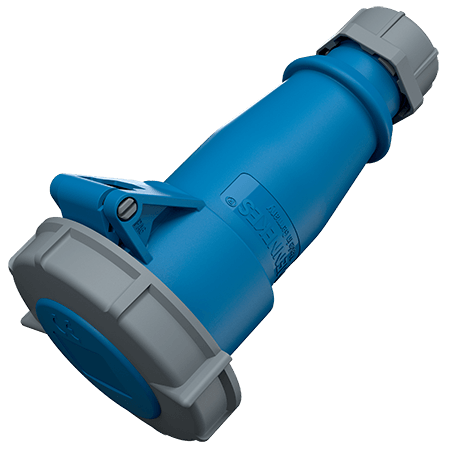

Connector AM-TOP® 21521

Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • with highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.21521
  • EAN4015394040873
  • Std. Pack. 10 Qty.

Technical specifications

Connector AM-TOP® 21521

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP 67
Weight 165 g
Declaration of Conformity DE,VDE
