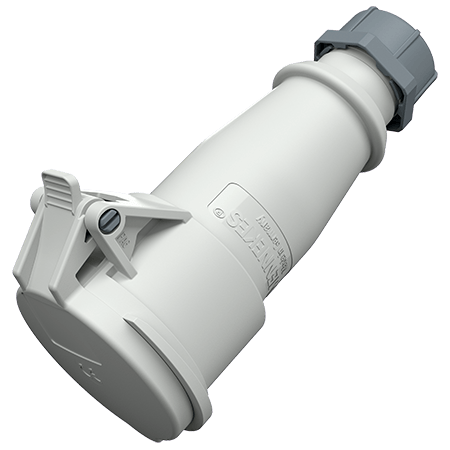

Connector AM-TOP® 3007

Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.3007
  • EAN4015394017325
  • Std. Pack. 10 Qty.

Technical specifications

Connector AM-TOP® 3007

Ampere 16 A
Poles 3 p
Voltage 50-500 V
Clock position 1 h
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 143 g
Declaration of Conformity DE,VDE
CN,CQC
