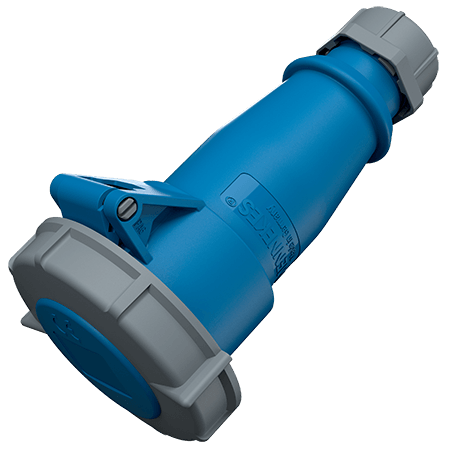

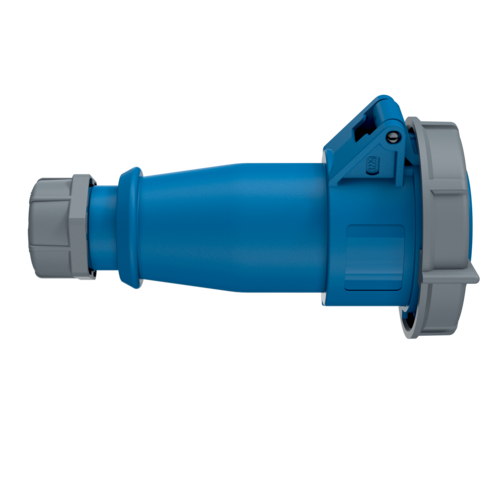

Connector AM-TOP® 3783

Clock position
  • screw terminals
  • with highly heat resistant contact carrier
  • nickel plated contacts
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.3783
  • EAN4015394099147
  • Std. Pack. 10 Qty.

Technical specifications

Connector AM-TOP® 3783

Ampere 16 A
Poles 7 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP 67
Weight 270 g
Declaration of Conformity EAC (Zwangszulassung)
