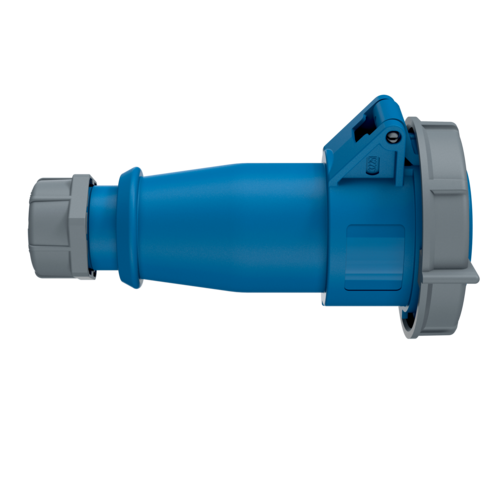

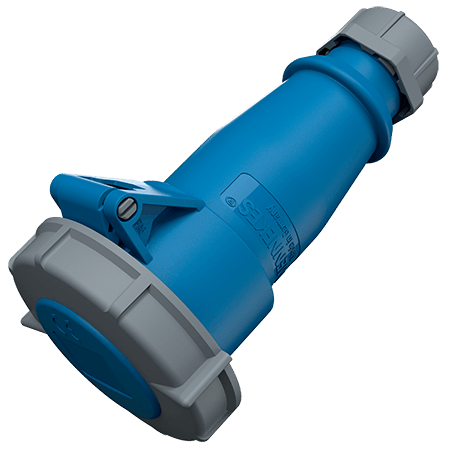

Connector AM-TOP® 540

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
single part body

cable gland and sealing
strain relief and protection against kinking

Part no.540
EAN4015394003946
Std. Pack. 10 Qty.

Technical specifications

Connector AM-TOP® 540

Ampere	16 A
Poles	3 p
Voltage	230 V
Clock position	6 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP 67
Weight	191 g
Declaration of Conformity	VDE EAC CQC

Dimensional drawing landscape format

Datasheets & Downloads

Connector AM-TOP® 540

Product info Connector AM-TOP® 540 PDF, 133 KB

Manufacturer‘s declaration Connector AM-TOP® 540 PDF, 54 KB

CAD data STP Connector AM-TOP® 540 ZIP, 1,006 KB

CAD data 3D DWG Connector AM-TOP® 540 ZIP, 2 MB

Dimensional drawing portrait Connector AM-TOP® 540 PNG, 71 KB

Dimensional drawing landscape format Connector AM-TOP® 540 PNG, 71 KB

Instructions

Mounting instructions Connector AM-TOP® 540 PDF, 2 MB
