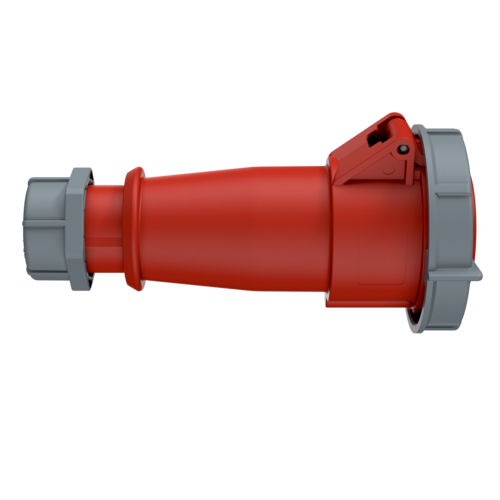

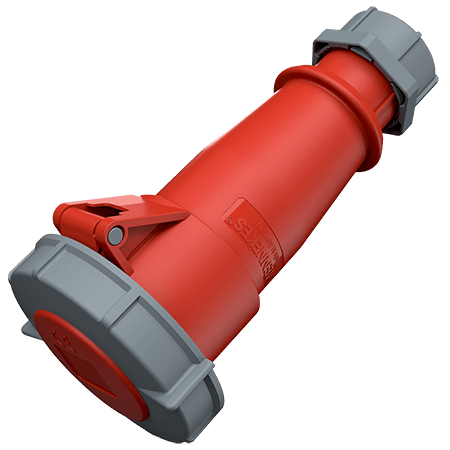

Connector AM-TOP® 556

Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.556
  • EAN4015394004110
  • Std. Pack. 10 Qty.

Technical specifications

Connector AM-TOP® 556

Ampere 32 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Weight 302 g
Declaration of Conformity DE,VDE
CN,CQC
