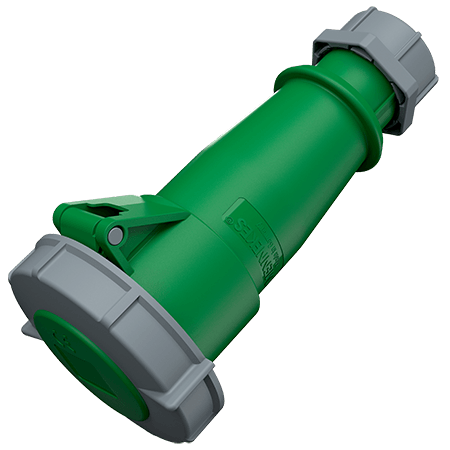

Connector AM-TOP® 559

Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.559
  • EAN4015394097099
  • Std. Pack. 10 Qty.

Technical specifications

Connector AM-TOP® 559

Ampere 32 A
Poles 4 p
Voltage 50-500 V
Clock position 2 h
Hertz 300-500 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Weight 380 g
Declaration of Conformity DE,VDE
CN,CQC
