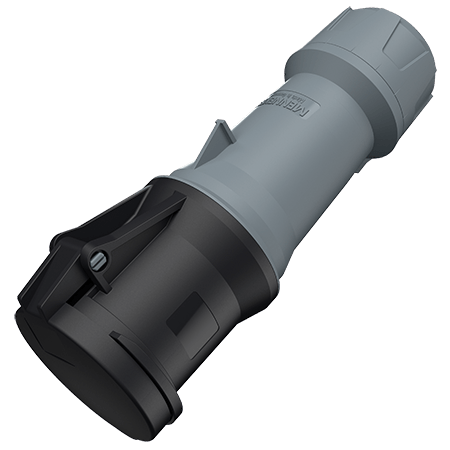

MENNEKES Connector PowerTOP® plus 3277

Please accept marketing-cookies to watch this video.

Video varieties

Connector PowerTOP® plus 3277

Ampere 63 A
Poles
Voltage
Clock position
  • screw terminals
  • frame terminals
  • X-CONTACT
  • highly heat resistant contact carrier
  • cable gland and sealing
  • strain relief and protection against kinking
  • enclosure with thread lock
  • two safety slides
  • products with pilot contact: part no + index P
  • Part no.3277
  • EAN4015394239475
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Connector PowerTOP® plus 3277

Ampere 63 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
X-CONTACT
Protection type IP44
Weight 780 g
Certifications VDE
EAC
CQC
