MENNEKES

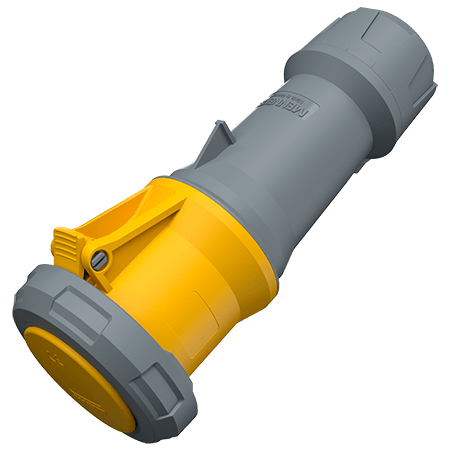

Connector PowerTOP plus 3404

Poles
Voltage
Clock position
  • X-CONTACT®
  • highly heat resistant contact carrier
  • frame terminals
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.3404
  • EAN4015394238928
  • Std. Pack. 5 Qty.

Technical specifications

Connector PowerTOP plus 3404

Ampere 63 A
Poles 4 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
X-CONTACT®
Protection type IP 67
Weight 820 g
Declaration of Conformity DE,VDE
CN,CCC
