Show all Connectors / Show all Connector PowerTOP Xtra R with ErgoCONTACT

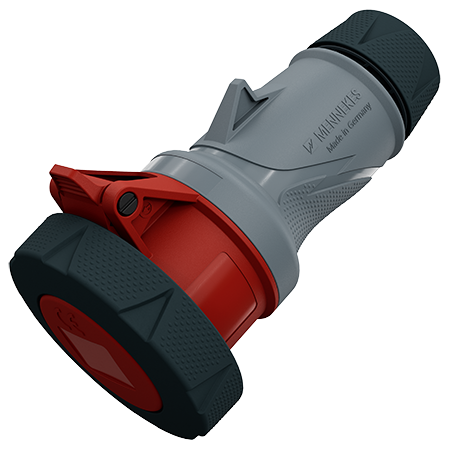

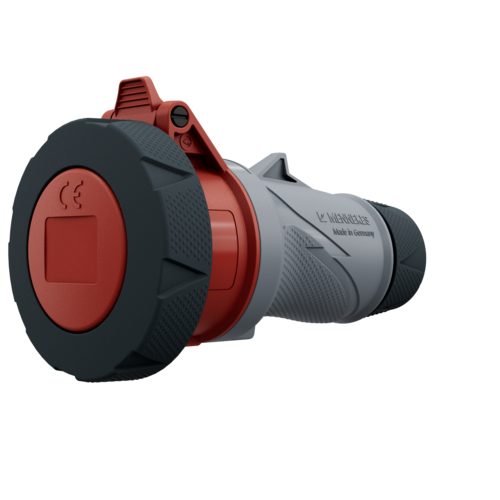

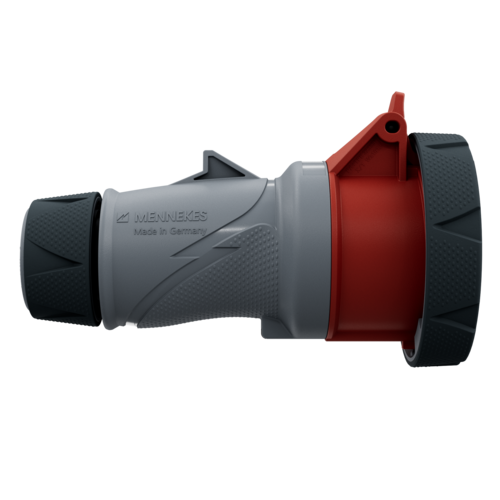

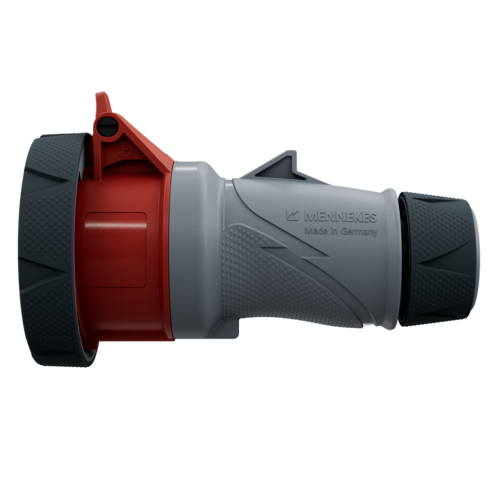

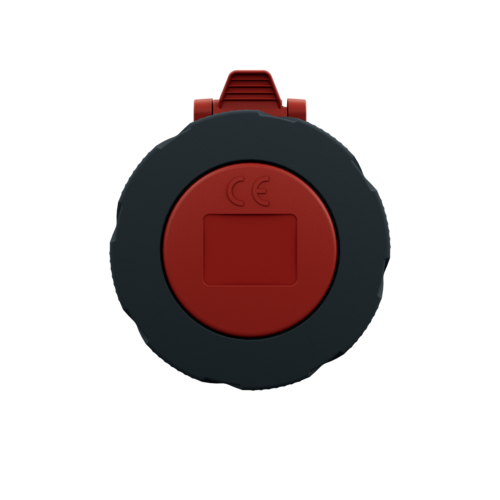

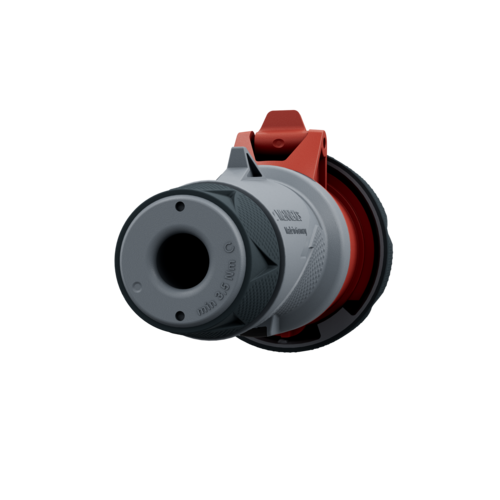

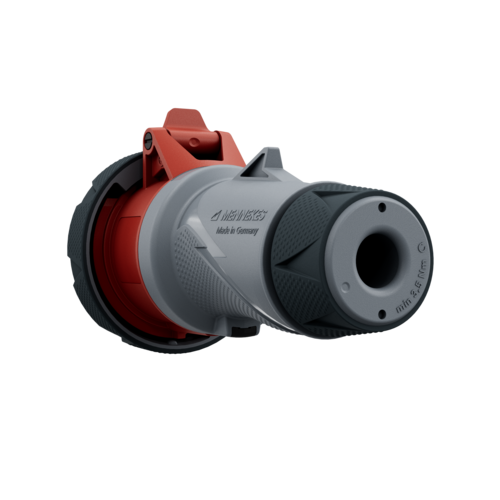

MENNEKES Connector PowerTOP Xtra R with ErgoCONTACT 14637

Connector PowerTOP Xtra R with ErgoCONTACT 14637

Robust technology for tough environmental conditions - the PowerTOP Xtra connector impresses with its proven success factors: ergonomic design, ease of installation, safe and uncomplicated connection....Read more
Ampere 16 A 32 A
  • screw connection technology ErgoCONTACT
  • X-CONTACT
  • ergonomic enclosure design with nubbed grip zones
  • highly heat resistant contact carrier
  • nickel plated contacts
  • rubberised cable gland with sealing
  • rubberised bayonet ring
  • sealed against dust, temporary submersion and high pressure cleaning
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • Part no.14637
  • EAN4015394308843
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

Read more

Technical specifications

Connector PowerTOP Xtra R with ErgoCONTACT 14637

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP67 / IP69
Weight 290 g
Certifications VDE

Datasheets & Downloads

Connector PowerTOP Xtra R with ErgoCONTACT 14637

Product infoConnector PowerTOP Xtra R with ErgoCONTACT 14637 PDF, 1 MB
CAD data STPConnector PowerTOP Xtra R with ErgoCONTACT 14637 ZIP, 3 MB
CAD data 3D DWGConnector PowerTOP Xtra R with ErgoCONTACT 14637 ZIP, 3 MB
Mounting instructionsConnector PowerTOP Xtra R with ErgoCONTACT 14637 PDF, 2 MB
Dimensional drawing portraitConnector PowerTOP Xtra R with ErgoCONTACT 14637 PNG, 160 KB
Dimensional drawing landscape formatConnector PowerTOP Xtra R with ErgoCONTACT 14637 PNG, 345 KB

Videos

Connector PowerTOP Xtra R with ErgoCONTACT 14637

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Connector PowerTOP Xtra R with ErgoCONTACT 14637

REACh
RoHS

Appropriate products

Connector PowerTOP Xtra R with ErgoCONTACT 14637 with IP67 / IP69

MENNEKES Plug PowerTOP Xtra R with ErgoCONTACT 13637

Plug PowerTOP Xtra R with ErgoCONTACT

Part no. 13637

  • Protection type: IP67 / IP69
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals, ErgoCONTACT
more

Appropriate accessories

Connector PowerTOP Xtra R with ErgoCONTACT 14637

MENNEKES Set cable gland PowerTOP Xtra G 42940

Set cable gland PowerTOP Xtra G

Part no. 42940

rubberised cable gland, with protective grommet to prevent dirt from accumulating, suitable for PowerTOP Xtra plugs and connetcor in 16 A

more
