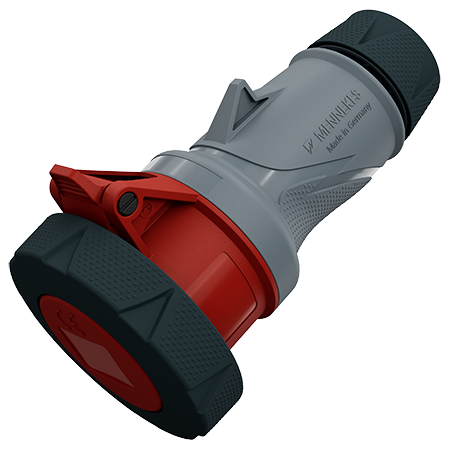

Connector PowerTOP Xtra R with ErgoCONTACT 14672
Robust technology for tough environmental conditions - the PowerTOP Xtra connector impresses with its proven success factors: ergonomic design, ease of installation, safe and uncomplicated connection. The connectors in the PowerTOP Xtra family comply with protection class IP67 / IP69 and are therefore not only protected against temporary submersion, but also against high-pressure cleaning.
Voltage
Clock position
- screw connection technology ErgoCONTACT
- X-CONTACT
- ergonomic enclosure design with nubbed grip zones
- highly heat resistant contact carrier
- nickel plated contacts
- rubberised cable gland with sealing
- rubberised bayonet ring
- sealed against dust, temporary submersion and high pressure cleaning
- strain relief and protection against kinking
- thread lock and safety slide
- area for self-adhesive labels
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Connector PowerTOP Xtra R with ErgoCONTACT 14672
| Ampere | 16 A |
|---|---|
| Poles | 4 p |
| Voltage | 440-460 V |
| Clock position | 11 h |
| Hertz | 60 Hz |
| Connection technology | Screw terminals, ErgoCONTACT |
| Contact |
nickel plated contacts highly heat resistant contact carrier |
| Protection type | IP67 / IP69 |
| Weight | 290 g |
