Show all Connectors / Show all Connector PowerTOP Xtra with ErgoCONTACT

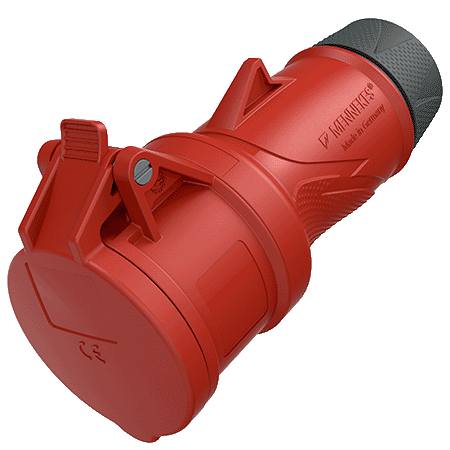

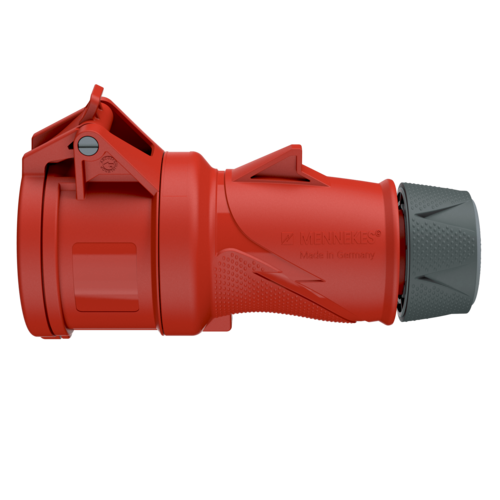

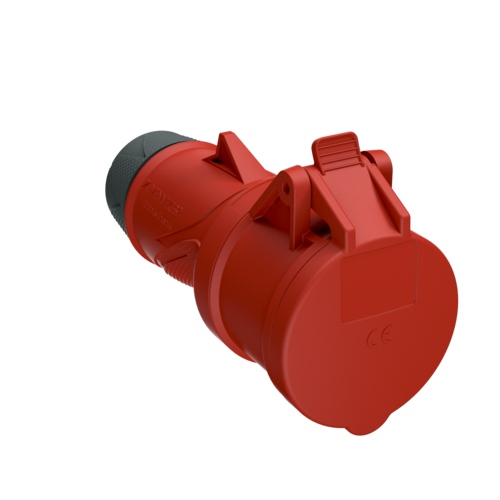

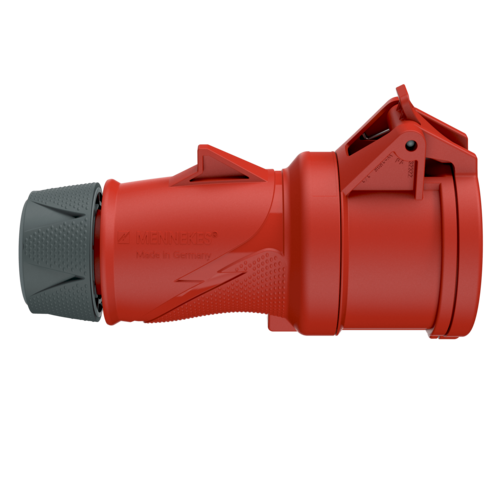

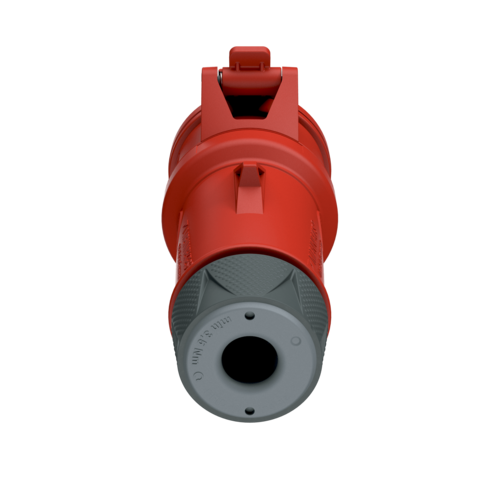

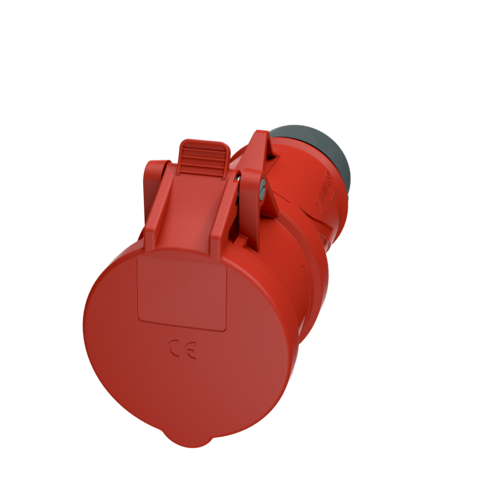

MENNEKES Connector PowerTOP Xtra with ErgoCONTACT 14510

Connector PowerTOP Xtra with ErgoCONTACT 14510

All versions of the PowerTOP Xtra connector deliver excellent results thanks to their ergonomic design, easy to install, safe and easy connection, and X-CONTACT inside. The innovative contact sleeves...Read more
Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw connection technology ErgoCONTACT
  • X-CONTACT
  • ergonomic enclosure design with nubbed grip zones
  • rubberised cable gland with sealing
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • Part no.14510
  • EAN4015394289357
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

Read more

X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Read more

Technical specifications

Connector PowerTOP Xtra with ErgoCONTACT 14510

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT
Contact X-CONTACT
Protection type IP54
Weight 274 g
Certifications VDE
CQC

Datasheets & Downloads

Connector PowerTOP Xtra with ErgoCONTACT 14510

Product infoConnector PowerTOP Xtra with ErgoCONTACT 14510 PDF, 1 MB
Manufacturer‘s declarationConnector PowerTOP Xtra with ErgoCONTACT 14510 PDF, 210 KB
CAD data STPConnector PowerTOP Xtra with ErgoCONTACT 14510 ZIP, 3 MB
CAD data 3D DWGConnector PowerTOP Xtra with ErgoCONTACT 14510 ZIP, 5 MB
Mounting instructionsConnector PowerTOP Xtra with ErgoCONTACT 14510 PDF, 2 MB
Dimensional drawing portraitConnector PowerTOP Xtra with ErgoCONTACT 14510 PNG, 189 KB
Dimensional drawing landscape formatConnector PowerTOP Xtra with ErgoCONTACT 14510 PNG, 339 KB
