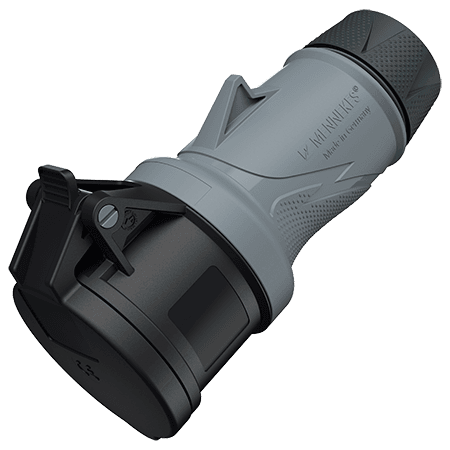

MENNEKES Connector PowerTOP® Xtra R with ErgoCONTACT 14610

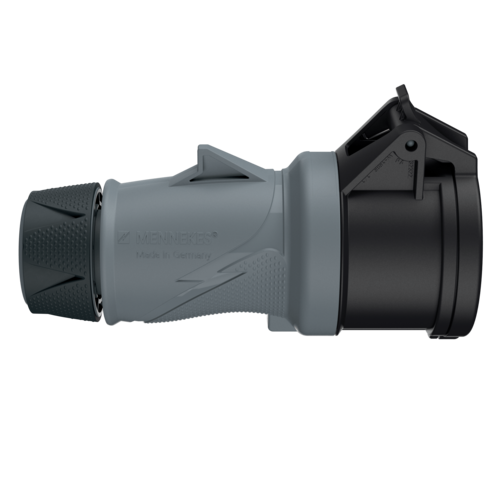

MENNEKES Connector PowerTOP® Xtra R with ErgoCONTACT 14610 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Connector PowerTOP® Xtra R with ErgoCONTACT 14610

All versions of the PowerTOP Xtra connector deliver excellent results thanks to their ergonomic design, easy to install, safe and easy connection, and X-CONTACT inside. The innovative contact sleeves ensure easy insertion and withdrawal. The PowerTOP Xtra connector has IP 54 protection class and is therefore impervious to both water spray and dust.

Poles
Voltage
Clock position
  • screw terminals ErgoCONTACT
  • X-CONTACT
  • highly heat resistant contact carrier
  • nickel plated contacts
  • ergonomic enclosure design with nubbed grip areas
  • rubberised cable gland with sealing
  • strain relief and protection against kinking
  • thread lock and safety slid
  • area for self-adhesive labels
  • Part no.14610
  • EAN4015394309550
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Connector PowerTOP® Xtra R with ErgoCONTACT 14610

Ampere 32 A
Poles 5 p
Voltage 600-690 V
Clock position 5 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT
Contact highly heat resistant contact carrier
X-CONTACT
Protection type IP54
Weight 436 g

Videos

Connector PowerTOP® Xtra R with ErgoCONTACT 14610

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Connector PowerTOP® Xtra R with ErgoCONTACT 14610

Appropriate accessories

Connector PowerTOP® Xtra R with ErgoCONTACT 14610

MENNEKES Set cable gland PowerTOP Xtra G 42932

Set cable gland PowerTOP Xtra G

Part no. 42932

rubberised cable gland, with protective grommet to prevent dirt from accumulating, suitable for PowerTOP Xtra plugs and connetcor in 32 A
