MENNEKES

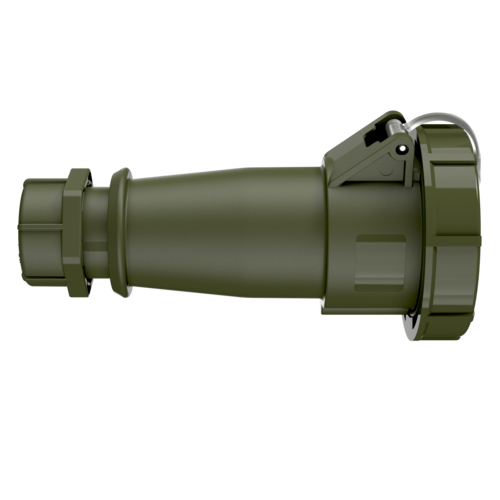

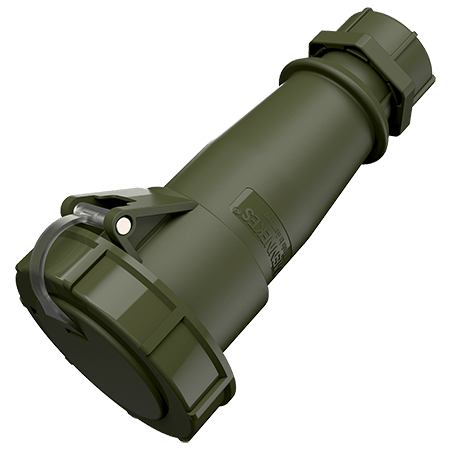

Connector TM 24787

Poles
Voltage
Clock position
  • screw terminals
  • with highly heat resistant contact carrier
  • nickel plated contacts
  • with protective cap
  • (form DS)
  • Part no.24787
  • EAN4015394260851
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Connector TM 24787

Ampere 32 A
Poles 5 p
Voltage 440-460 V
Clock position 11 h
Hertz 60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP 67
Weight 452 g
