MENNEKES

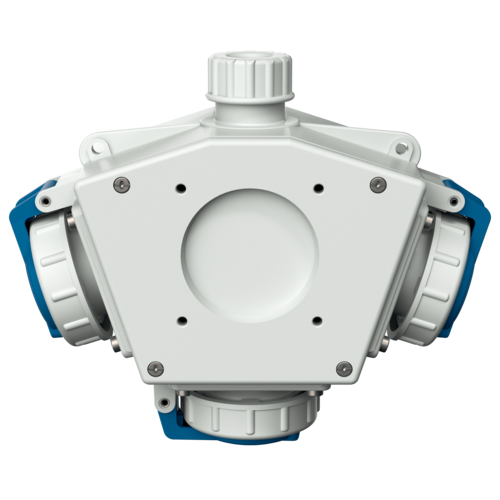

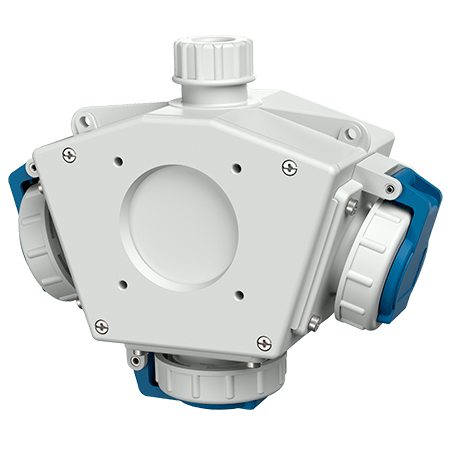

MENNEKES DELTA-BOX receptacle combination 10860
MENNEKES DELTA-BOX receptacle combination 10860 images3d

DELTA-BOX receptacle combination 10860

SCHUKO® 16 A, 230 V
  • with cable grip
  • pre-wired for installation
  • with internal strain relief and installed hanging hook
  • enclosure and insert made of AMAPLAST
  • Part no.10860
  • EAN4015394035671
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

DELTA-BOX receptacle combination 10860

SCHUKO® 16 A, 230 V 3
Connection/feeder cable
  • for 1 cable up to 3 x 6 mm²
Protection type IP68
Enclosure material Plastic
Weight 795 g
Certifications EAC
Storage receptacle combination D

Directives

DELTA-BOX receptacle combination 10860

Appropriate accessories

DELTA-BOX receptacle combination 10860

MENNEKES Blanking flange 41419

Blanking flange

Part no. 41419

to close unused apertures, grey

MENNEKES Pneumatic connection 41441

Pneumatic connection

Part no. 41441

for DELTA-BOX and mobile receptacle combinations

MENNEKES Pneumatic connection 41440

Pneumatic connection

Part no. 41440

for DELTA-BOX, for tube diameter 9 mm, part no. 41440, for tube diameter 13 mm, part no. 41441
