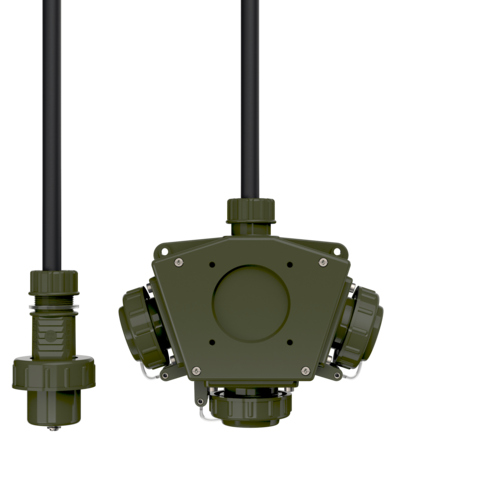

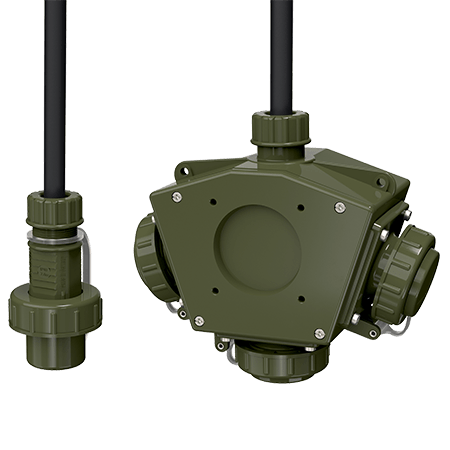

MENNEKES DELTA BOX TM 84708
MENNEKES DELTA BOX TM 84708 images3d

DELTA BOX TM 84708

SCHUKO® 16 A, 230 V
  • screw terminals
  • with bayonet lid attached by a strap
  • with installed hanging hook
  • with hanging clip
  • supply cable tail 1.5 m H07RN-F3G2,5 and plug SCHUKO®
  • Part no.84708
  • EAN4015394164968
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

DELTA BOX TM 84708

SCHUKO® 16 A, 230 V 3
Connection/feeder cable
  • 1.5 m H07RN-F3G2,5 with plug SCHUKO® 16 A, 230 V
Protection type IP68
Enclosure material Plastic
Weight 1602 g
Certifications EAC
Storage receptacle combination B

Directives

DELTA BOX TM 84708

Appropriate accessories

DELTA BOX TM 84708

MENNEKES Pneumatic connection 41440

Pneumatic connection

Part no. 41440

for DELTA-BOX, for tube diameter 9 mm, part no. 41440, for tube diameter 13 mm, part no. 41441

MENNEKES Blanking flange 41419

Blanking flange

Part no. 41419

to close unused apertures, grey

MENNEKES Pneumatic connection 41441

Pneumatic connection

Part no. 41441

for DELTA-BOX and mobile receptacle combinations
