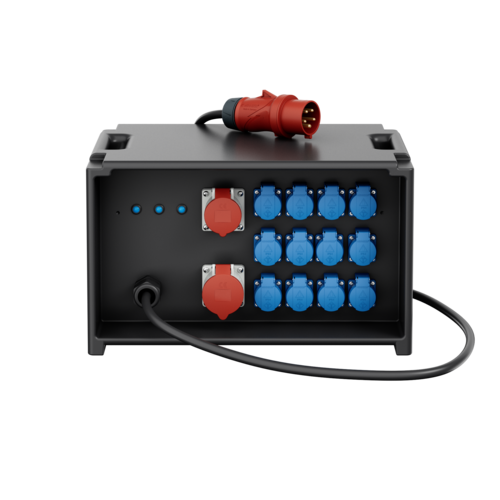

EverBOX® 9500722

CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • robust, watertight insulating enclosure, black RAL 9005
  • pre-wired for installation
  • fusing behind a transparent cover
  • Part no.9500722
  • EAN4015394283621
  • Std. Pack. 1 Qty.

Technical specifications

EverBOX® 9500722

CEE 32 A, 5 p, 400 V 1
CEE 16 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 12
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
  • 1 MCB 16 A, 3 p, C, 10 kA
  • 12 MCB´s 16 A, 1 p, C, 10 kA
  • 3 Phase control lights green
Pre-fuse max. 32 A
InA 32 A
RDF 1
Connection/feeder cable
  • 2 m H07RN-F5G6 with CEE-plug 32 A, 5 p, 400 V
Protection type IP 44
Enclosure material Plastic
Weight 23876 g
Length 560 mm
Height 340 mm
Width 350 mm
Storage receptacle combination D
