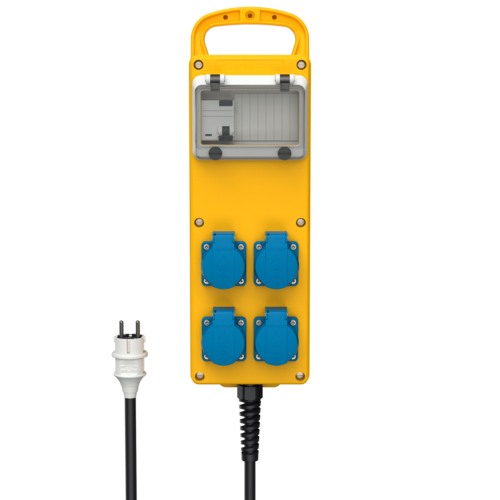

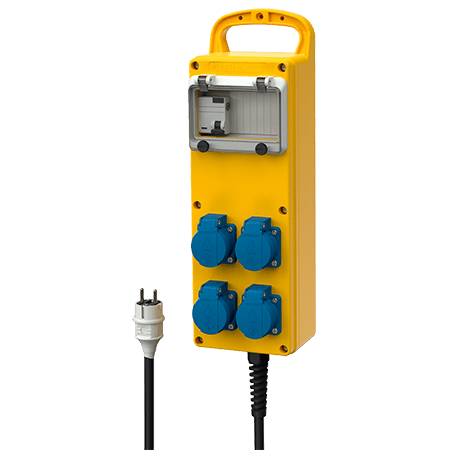

MENNEKES EverGUM receptacle combination 70027
MENNEKES EverGUM receptacle combination 70027 images3d

EverGUM receptacle combination 70027

SCHUKO® 16 A, 230 V
  • solid rubber enclosure, signal yellow RAL 1003
  • pre-wired for installation
  • Part no.70027
  • EAN4015394103271
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

EverGUM receptacle combination 70027

SCHUKO® 16 A, 230 V 4
Fusing
  • 1 RCD 25 A, 2 p, 0.03 A
Pre-fuse max. 16 A
InA 16 A
RDF 1
Connection/feeder cable
  • 2 m H07RN-F3G1.5 with plug SCHUKO® 16 A, 230 V
Protection type IP44
Enclosure material Solid rubber
Weight 3352 g
Height 445 mm
Width 135 mm
Certifications EAC
Storage receptacle combination A

Directives

EverGUM receptacle combination 70027

Frequently asked questions about the product

Are there IP5x EverGUM® products?

The standard IP protection classes for the EverGUM® product series are IP 44 and IP 67. Another protection class can be considered on a case-by-case basis.

Is there a stand available for the mobile EverGUM®?

Our EverGUM® combination units are suitable for free-standing floor applications. A stand is therefore not required.
