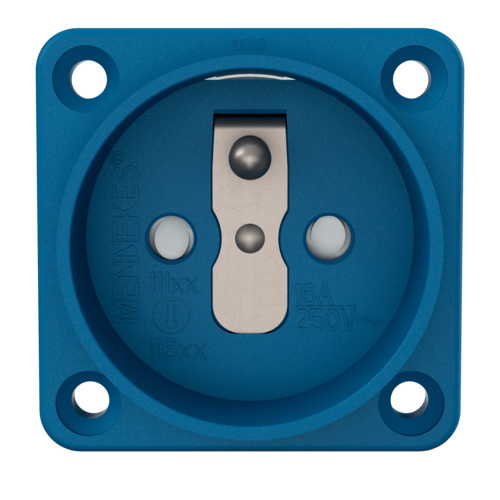

MENNEKES Grounding-type panel mounted receptacle 11681
MENNEKES Grounding-type panel mounted receptacle 11681 images3d

Grounding-type panel mounted receptacle 11681

Ampere 16 A
Poles
Voltage
  • French-belgian standard
  • without hinged lid
  • 3 screw terminals as connecting terminals for 1.5 - 2.5 mm²
  • other colours on request
  • Part no.11681
  • EAN4015394195528
  • Std. Pack. 100
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Grounding-type panel mounted receptacle 11681

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP20
Shutter Yes
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 34 g
Certifications EAC

Directives

Grounding-type panel mounted receptacle 11681

Appropriate accessories

Grounding-type panel mounted receptacle 11681

MENNEKES Base for wall mounted receptacle 10715

Base for wall mounted receptacle

Part no. 10715

with cable entry and screws, suitable for all panel mounted receptacles SCHUKO®/ grounding type receptacles, flange: 50 x 50 mm
