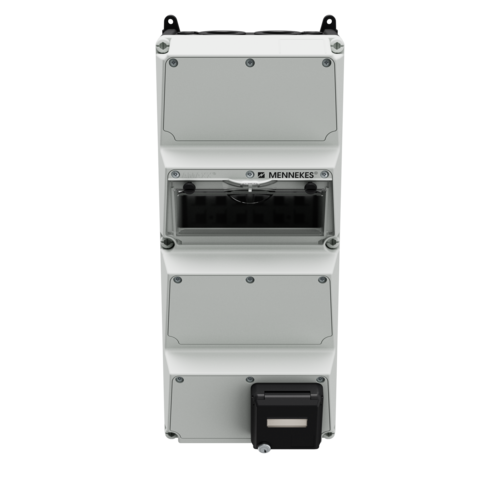

MENNEKES Industrial Network Distributor 25405

Industrial Network Distributor 25405

SCHUKO® 16 A, 230 V
  • With the new industrial network distributor from the AMAXX family, MENNEKES offers a product for the expansion of network solutions
  • pre-wired for installation
  • enclosure front cover electric grey RAL 7035, yellow (GE) RAL 1021 also available on request
  • enclosure hinged on the side
  • Part no.25405
  • EAN4015394282242
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Industrial Network Distributor 25405

SCHUKO® 16 A, 230 V 2
Data port sockets 1 Cepex data port receptacle (black RAL 9005) with 2 RJ45 right angle connector modules for direct connection of patch cables
Fitted with
  • Patch and mounting panel with threaded ground bolt M6 for the optional connection of an external ground conductor
Connection/feeder cable
  • 4 Velcro connectors for fastening installed components on the base plate
  • 2 screw fittings M 40 with multiple seal, 6 openings for a cable diameter of 6-9 mm including 5 each blanking plugs
  • 1 screw fitting M 20
  • 1 screw set
Protection type IP44
Enclosure material Plastic
Weight 4350 g
Height 520 mm
Width 225 mm
Storage receptacle combination D
