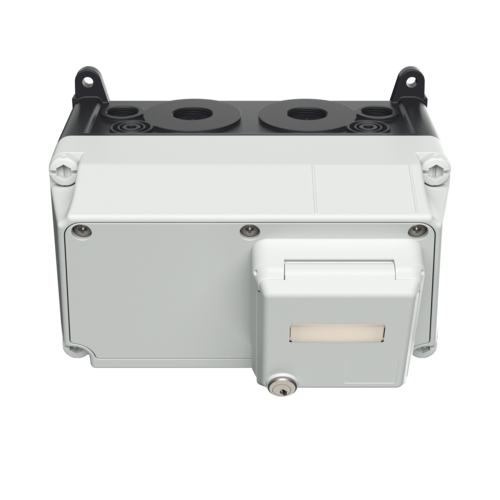

Network enclosure AMAXX 25104

  • network enclosure made of AMAPLAST
  • protection class IP 44
  • top part electric grey RAL 7035 or yellow RAL 1021, bottom part black with screw-in nuts for installation of a floor-mounted base
  • including a height-adjustable mounting rail
  • cable gland set with multiple seal
  • Part no.25104
  • EAN4015394240631
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Network enclosure AMAXX 25104

Data port sockets 1 Cepex data port socket prepared for 2 RJ45 connection module couplings, type E-DAT module, port, cat.6, brand: BTR (part no. 41455) or OpDAT module LC or ST (brand BTR - not delivery contains)
Connection/feeder cable
  • each x M 25 top and bottom (sealed)
  • each x M 20 top and bottom (sealed)
  • cable gland M 25 bottom (multiple seal with 3 openings for a cable diameter of 5-7 mm including suitable blanking plugs, 1 cap-shape seal blank for punched hole)
Protection type IP44
Enclosure material Plastic
Weight 1206 g
Height 130 mm
Width 225 mm
Certifications EAC
