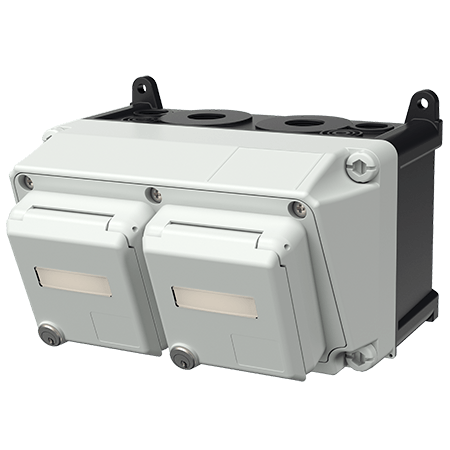

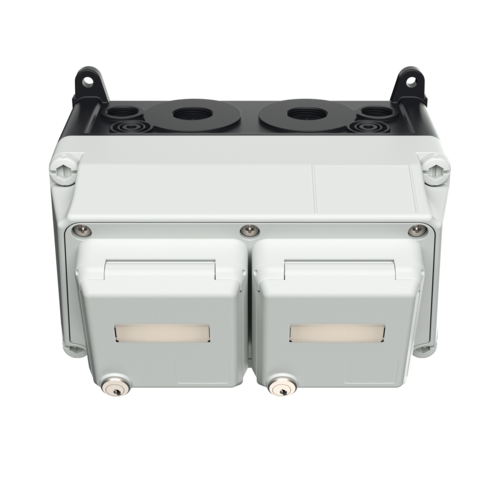

Network enclosure AMAXX® 25102

With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one housing with external mounting that allows installation by one person. The hinged housing cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

network enclosure made of AMAPLAST
protection type IP 44
top part electric grey RAL 7035 or yellow RAL 1021, bottom part black with screw-in nuts for installation of a floor-mounted base

including a height-adjustable mounting rail
cable gland set with multiple seal

Part no.25102
EAN4015394240600
Std. Pack. 1

Technical specifications

Network enclosure AMAXX® 25102

Data port sockets	2 Cepex data port sockets identical lock, prepared for 4 RJ45 connection module couplings, type E-DAT module, port, cat.6, brand: BTR (part no. 41455) or OpDAT module LC or ST (brand BTR - not delivery contains)
Connection/feeder cable	each x M 25 top and bottom (sealed) each x M 20 top and bottom (sealed) cable gland M 25 bottom (multiple seal with 3 openings for a cable diameter of 5-7 mm including suitable blanking plugs, 1 cap-shape seal blank for punched hole)
Protection type	IP44
Enclosure material	Plastic
Weight	1550 g
Height	130 mm
Width	225 mm
Certifications	EAC
Storage receptacle combination	D
