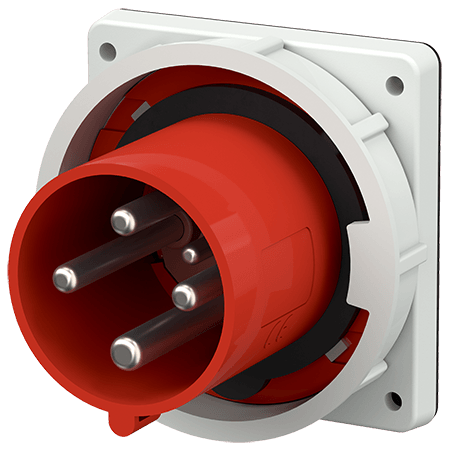

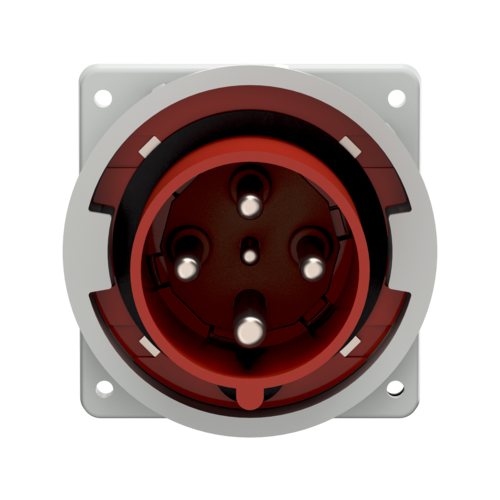

Panel mounted inlet 3583

Poles
Voltage
Clock position
  • screw terminals
  • with highly heat resistant contact carrier
  • nickel plated contacts
  • Part no.3583
  • EAN4015394019886
  • Std. Pack. 5 Qty.

Technical specifications

Panel mounted inlet 3583

Ampere 125 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP 67
Weight 1034 g
Declaration of Conformity EAC
CQC

Appropriate accessories

Panel mounted inlet 3583

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage

more

Protective cover

Part no. 40788

for watertight plugs, wall mounted and panel mounted inlets

more
