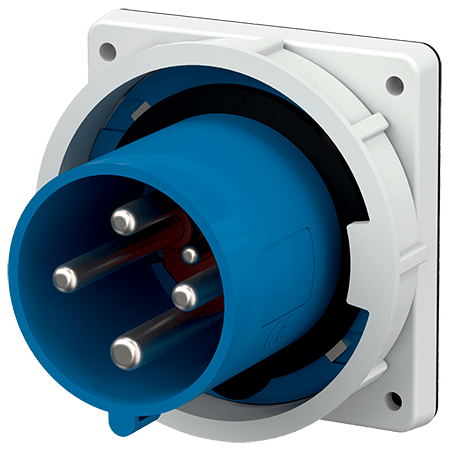

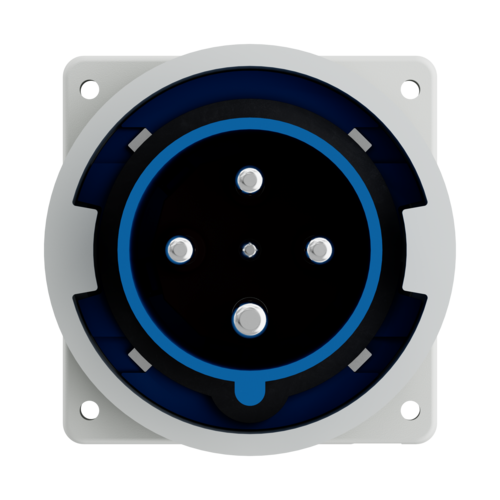

Panel mounted inlet 3704

Poles
Voltage
Clock position
  • screw terminals
  • with highly heat resistant contact carrier
  • nickel plated contacts
  • a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking
  • Part no.3704
  • EAN4015394021001
  • Std. Pack. 5 Qty.

Technical specifications

Panel mounted inlet 3704

Ampere 63 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP 67
Weight 531 g
Declaration of Conformity DE,VDE
CN,CQC

Appropriate accessories

Panel mounted inlet 3704

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage

more

Protective cover

Part no. 40787

for watertight plugs, wall mounted and panel mounted inlets

more
