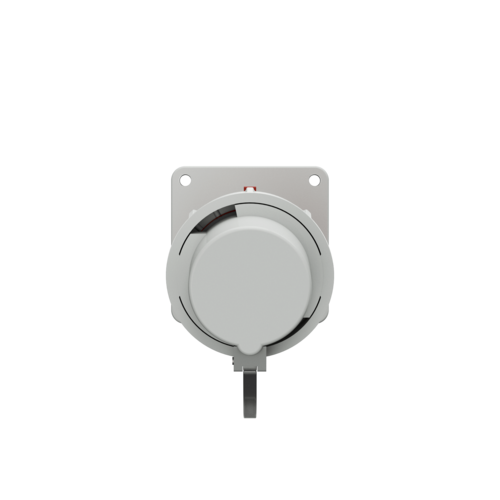

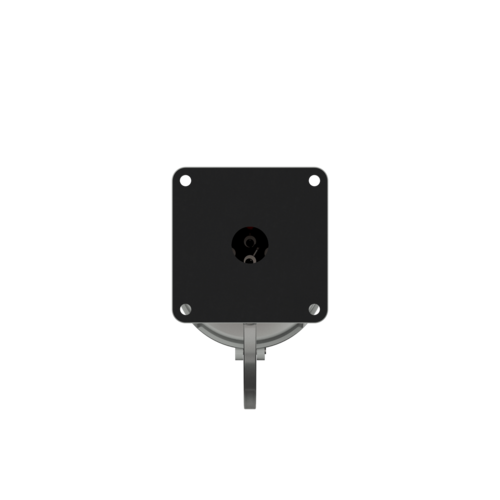

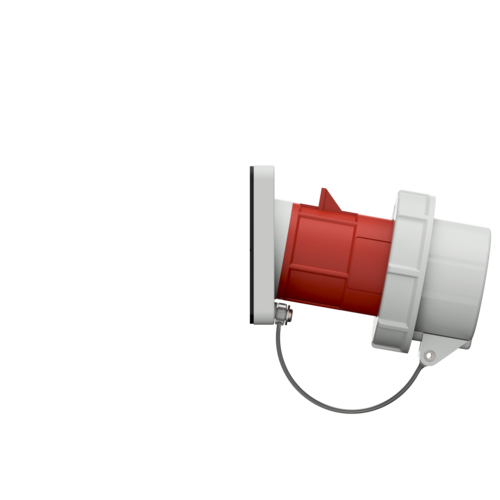

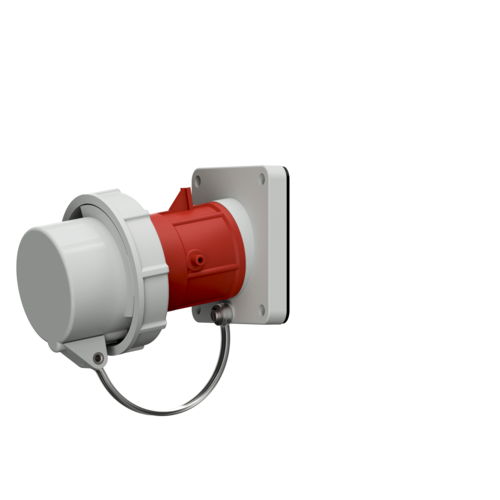

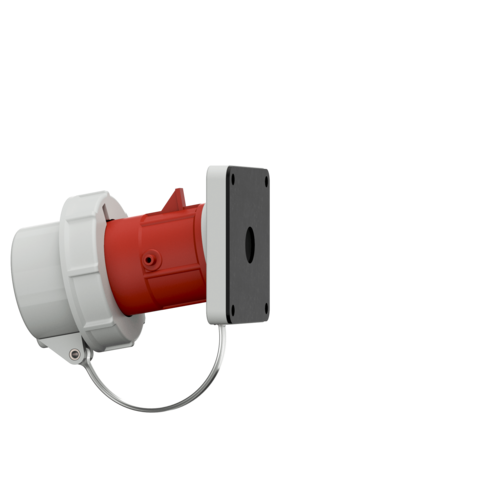

MENNEKES Panel mounted inlet 3914
MENNEKES Panel mounted inlet 3914 images3d

Panel mounted inlet 3914

Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • with protective cap
  • Part no.3914
  • EAN4015394115793
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted inlet 3914

Ampere 16 A
Poles 7 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 326 g
Certifications EAC

Directives

Panel mounted inlet 3914

Appropriate accessories

Panel mounted inlet 3914

MENNEKES Protective cover 40785

Protective cover

Part no. 40785

for watertight plugs, wall mounted and panel mounted inlets 16 A, 5 p + 7 p

Frequently asked questions about the product

What do I use a 7-pin device for?

7-pin plugs and sockets can be used for any application that requires additional contacts.
