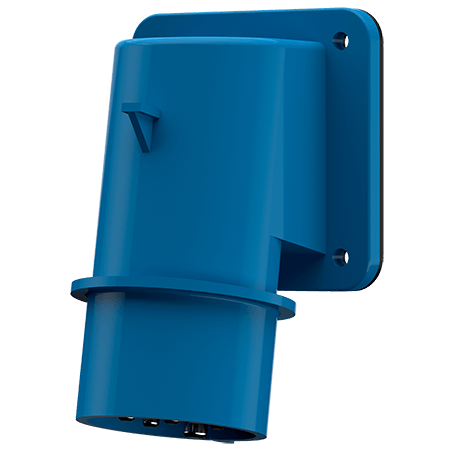

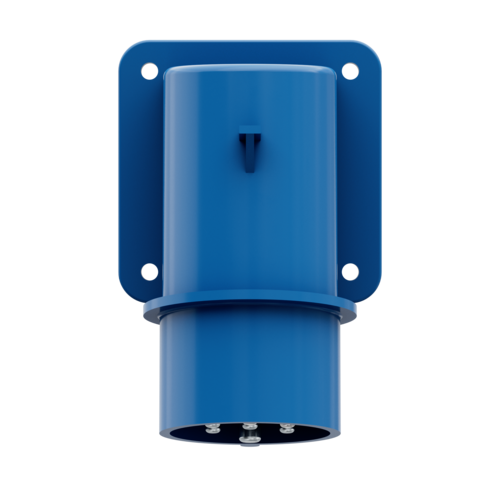

Panel mounted inlet 749

Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • Part no.749
  • EAN4015394005766
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted inlet 749

Ampere 16 A
Poles 7 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP 44
Weight 204 g
Declaration of Conformity EAC

Appropriate accessories

Panel mounted inlet 749

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage
