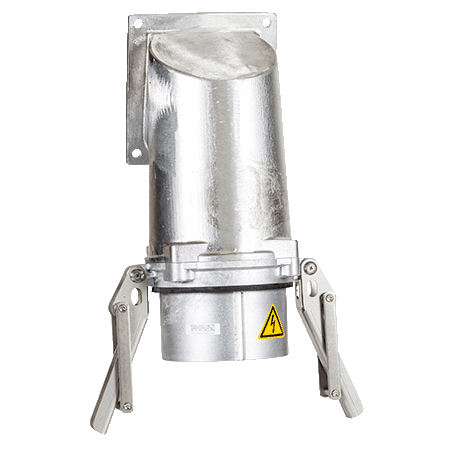

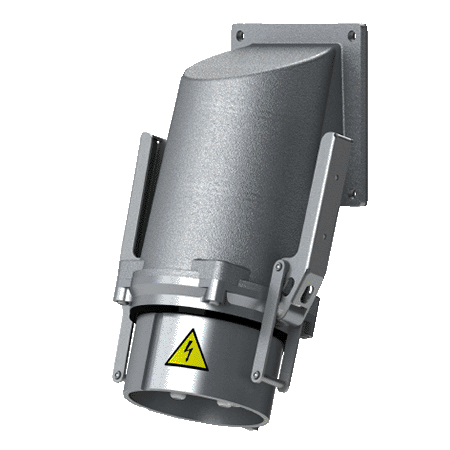

Panel mounted inlet 75336

Poles
Voltage
Clock position
  • 15° inclination
  • seawater resistant design are available on request
  • Part no.75336
  • EAN4015394283201
  • Std. Pack. 1 Qty.

Technical specifications

Panel mounted inlet 75336

Ampere 400 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Weight 9300 g
