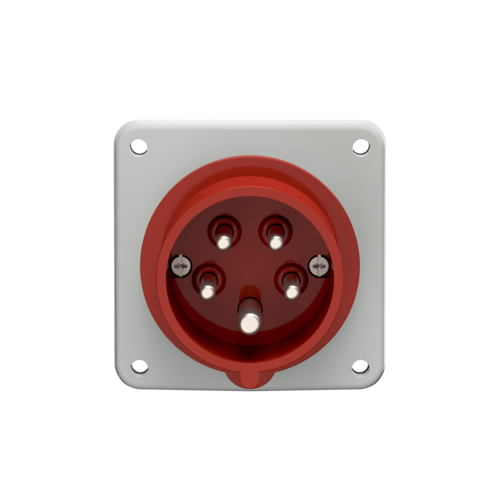

Panel mounted inlet 821

Poles
Voltage
Clock position
  • screw terminals
  • nickel-plated contacts
  • a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking
  • Part no.821
  • EAN4015394116790
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted inlet 821

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
Protection type IP 44
Weight 249 g
Declaration of Conformity CN,CQC
DE,VDE (ÜG)

Appropriate accessories

Panel mounted inlet 821

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage
