MENNEKES Panel mounted inlet 825
MENNEKES Panel mounted inlet 825 images3d

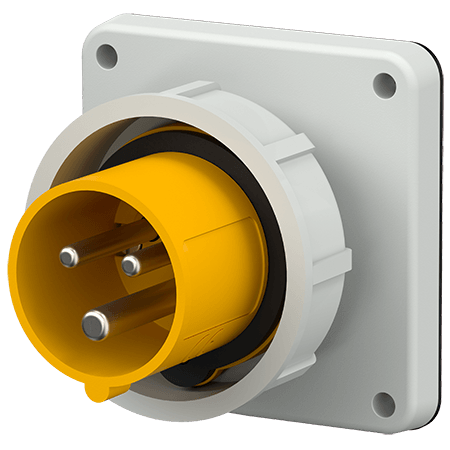

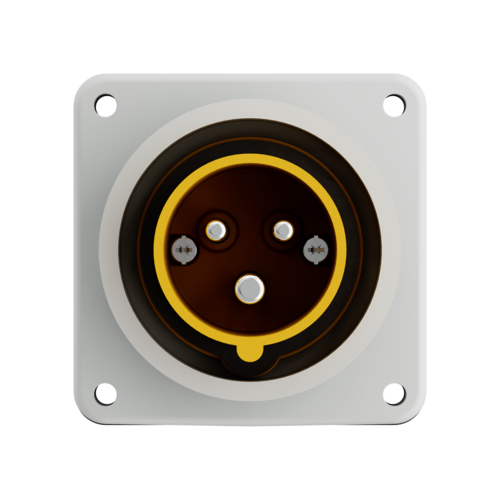

Panel mounted inlet 825

Poles
Voltage
Clock position
  • screw terminals
  • nickel plated contacts
  • a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking
  • Part no.825
  • EAN4015394116820
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted inlet 825

Ampere 16 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
Protection type IP67
Weight 170 g
Certifications VDE (ÜG)
EAC
CQC

Directives

Panel mounted inlet 825

Appropriate accessories

Panel mounted inlet 825

MENNEKES Protective cover 40784

Protective cover

Part no. 40784

for watertight plugs, wall mounted and panel mounted inlets 16 A, 3 p
