MENNEKES Panel mounted inlet SCHUKO® 10852
MENNEKES Panel mounted inlet SCHUKO® 10852 images3d

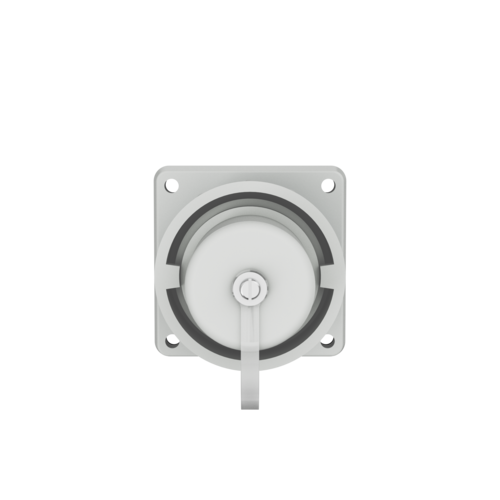

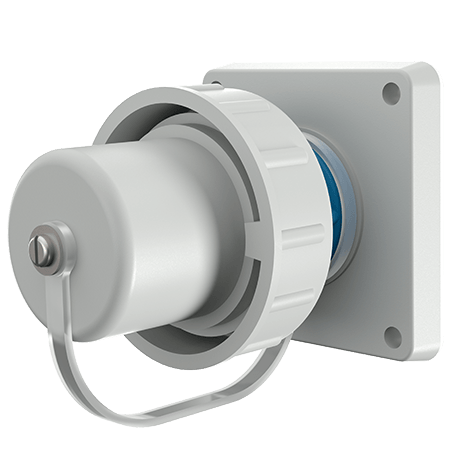

Panel mounted inlet SCHUKO® 10852

Ampere 16 A
Poles
Voltage
  • screw terminals
  • with combined PE-conductor acc. to german and french-belgian standard
  • with bayonet ring
  • protective cap attached by a strap
  • Part no.10852
  • EAN4015394035640
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted inlet SCHUKO® 10852

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP68
Shutter No
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 138 g
Certifications VDE

Directives

Panel mounted inlet SCHUKO® 10852
