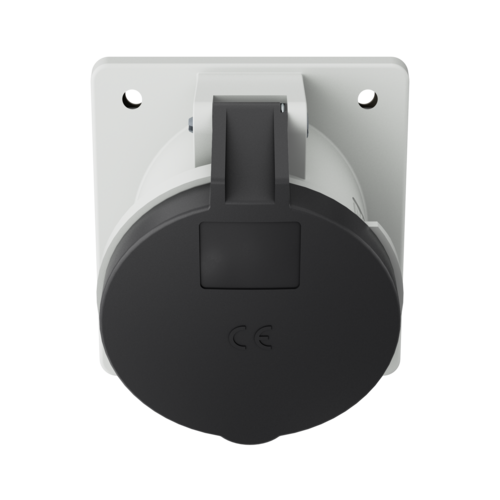

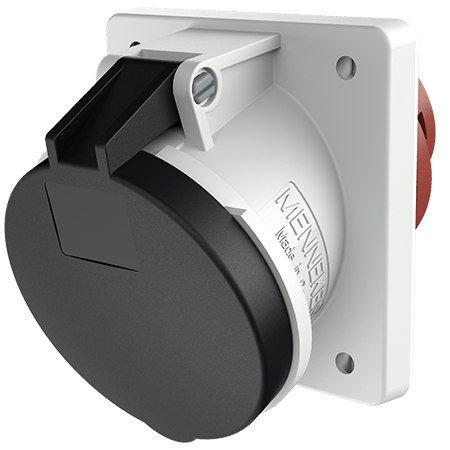

MENNEKES Panel mounted receptacle 1152A
MENNEKES Panel mounted receptacle 1152A images3d

Please accept marketing-cookies to watch this video.

Video varieties

Panel mounted receptacle 1152A

Ampere 63 A
Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT
  • highly heat resistant contact carrier
  • 20° inclination
  • products with pilot contact on request
  • Part no.1152A
  • EAN4015394007821
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Panel mounted receptacle 1152A

Ampere 63 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
X-CONTACT
Protection type IP44

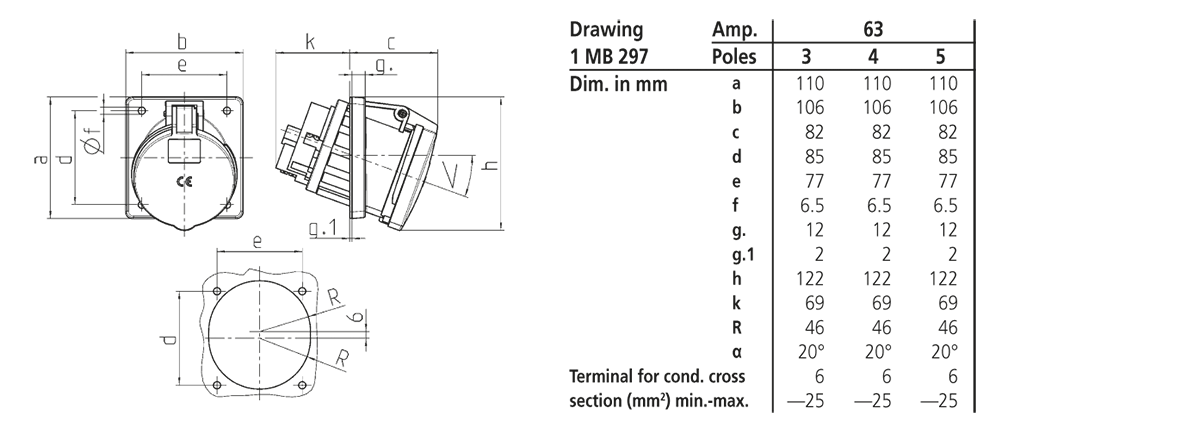

Flange 110x106 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 569 g
Certifications VDE
