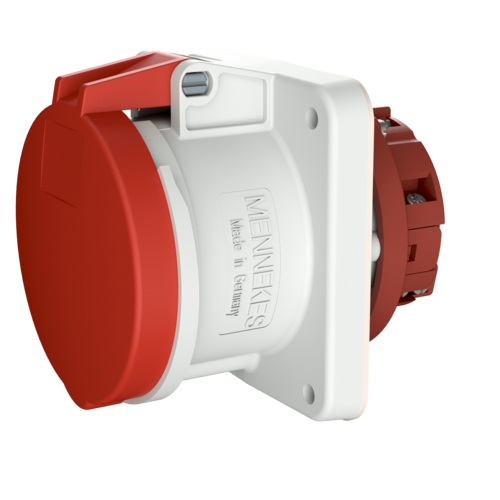

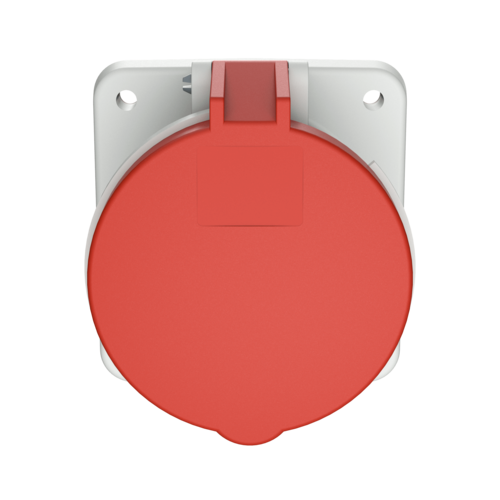

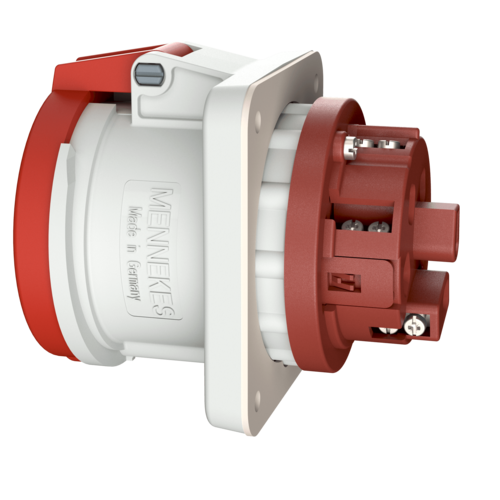

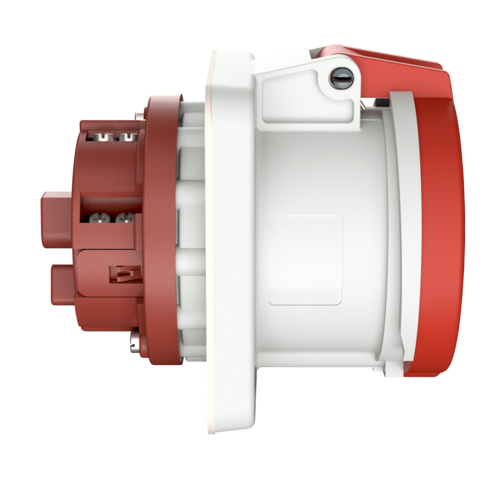

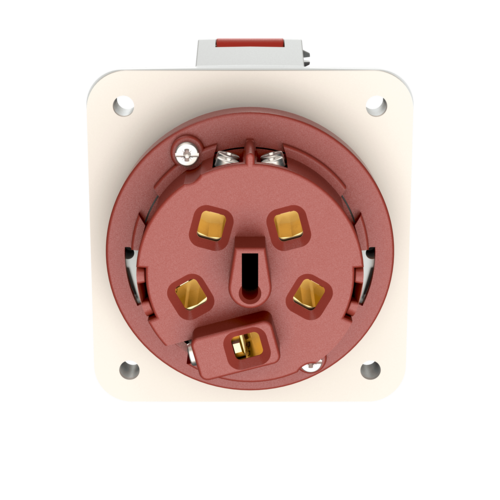

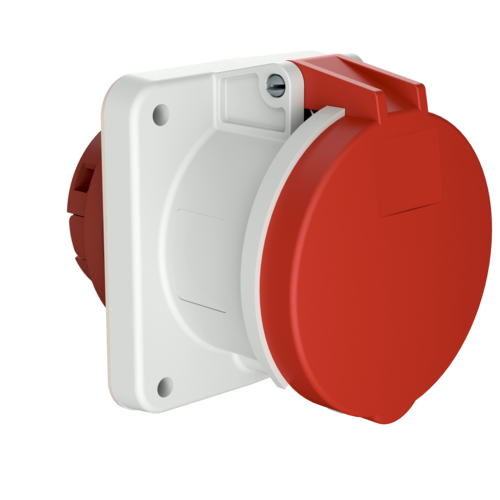

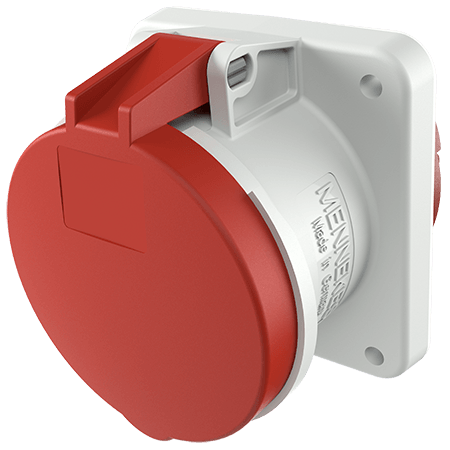

Panel mounted receptacle 1252A

Ampere 63 A
Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT®
  • straight
  • products with pilot contact on request
  • Part no.1252A
  • EAN4015394008842
  • Std. Pack. 5 Qty.

Technical specifications

Panel mounted receptacle 1252A

Ampere 63 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT®
Protection type IP 44
Flange 107x100 mm
Fixing hole 85x77 mm
Weight 623 g
Declaration of Conformity VDE
EAC
CQC
