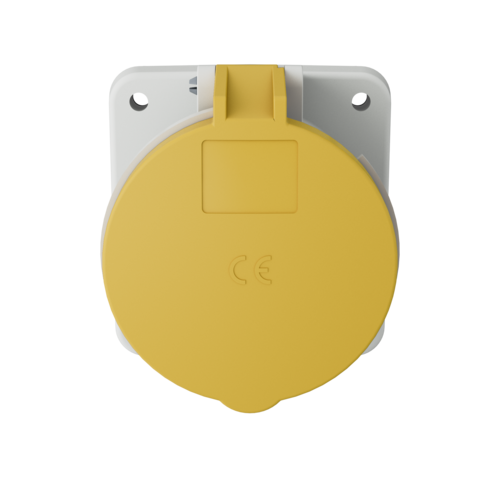

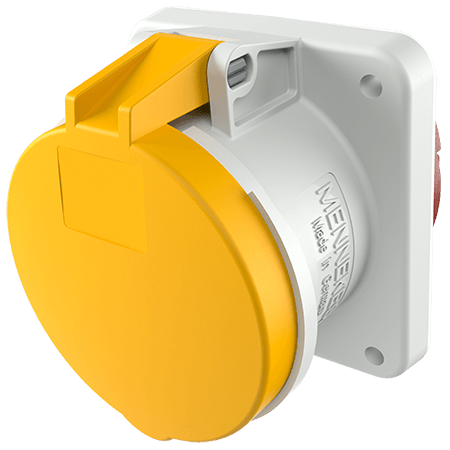

Panel mounted receptacle 1260A

Ampere 63 A
Poles
Voltage
Clock position
  • straight
  • products with pilot contact on request
  • Part no.1260A
  • EAN4015394008934
  • Std. Pack. 5 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 1260A

Ampere 63 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT®
Protection type IP 44
Flange 107x100 mm
Fixing hole 85x77 mm
Weight 523 g
Declaration of Conformity VDE
EAC
CQC
