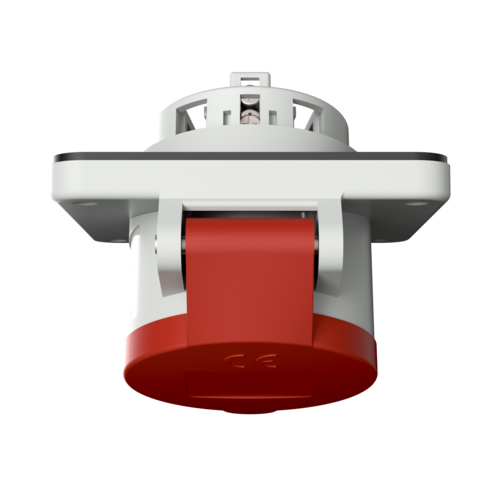

Panel mounted receptacle 1282

Poles
Voltage
Clock position
  • screw terminals
  • for horizontal installation
  • 15° inclination
  • Part no.1282
  • EAN4015394009214
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle 1282

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Flange 85x85 mm
Fixing hole 70x70 mm
Inclination 15 °
Weight 155 g
Declaration of Conformity EAC
