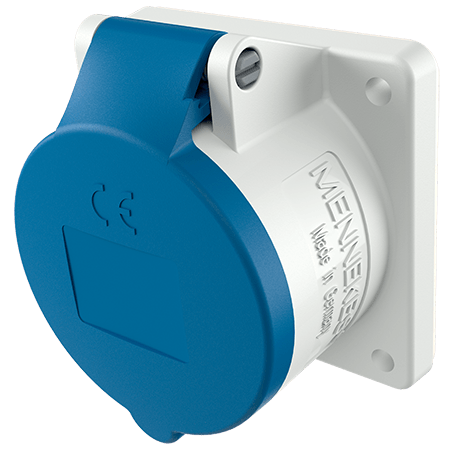

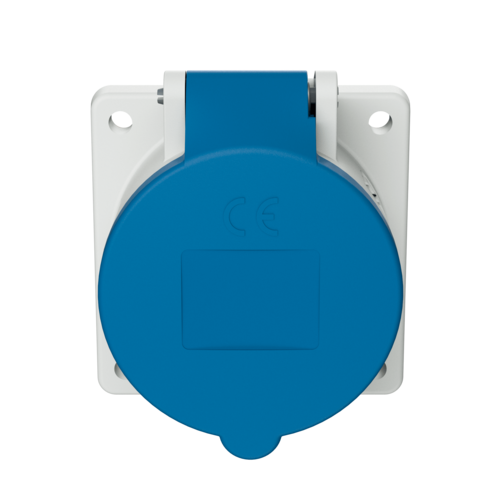

Panel mounted receptacle 1366

Poles
Voltage
Clock position
  • screw terminals
  • straight
  • Part no.1366
  • EAN4015394009894
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle 1366

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 136 g
Declaration of Conformity NL,Kema
AT,ÖVE
CN,CQC

Appropriate accessories

Panel mounted receptacle 1366

Flange

Part no. 40102

for panel mounted receptacles: product group 1056 (screw terminals): all 16 A, 3 p to 5 p as well as 32 A, 5 p in special form (comp. type 1276) product group 1134 (screwless, TwinCONTACT): all 16 A, 3 p to 5 p

more

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136

more

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

more
