MENNEKES

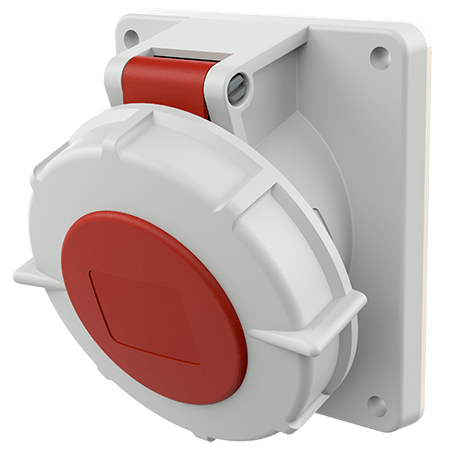

Panel mounted receptacle 1479

Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • 32 A receptacles optional fitted with auxiliary contact
  • Part no.1479
  • EAN4015394011378
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle 1479

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 203 g
Declaration of Conformity CN,CQC

Appropriate products

Panel mounted receptacle 1479 with IP 67

Connector AM-TOP®

Part no. 544

  • Protection type: IP 67
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more

Wall mounted receptacle

Part no. 9322

  • Protection type: IP 67
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more

Plug AM-TOP®

Part no. 282

  • Protection type: IP 67
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more

Wall mounted receptacle

Part no. 5600A

  • Protection type: IP 67
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more
