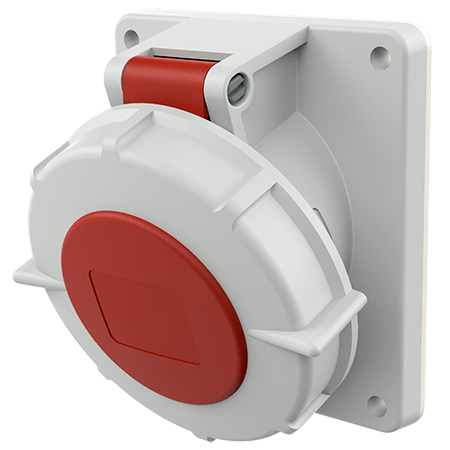

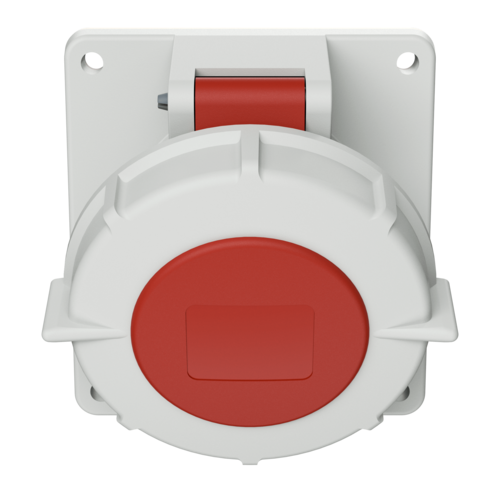

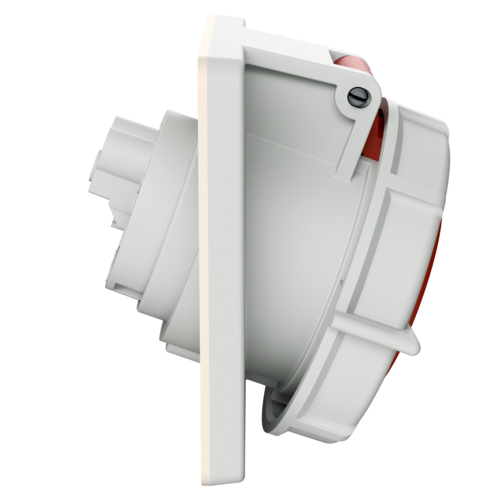

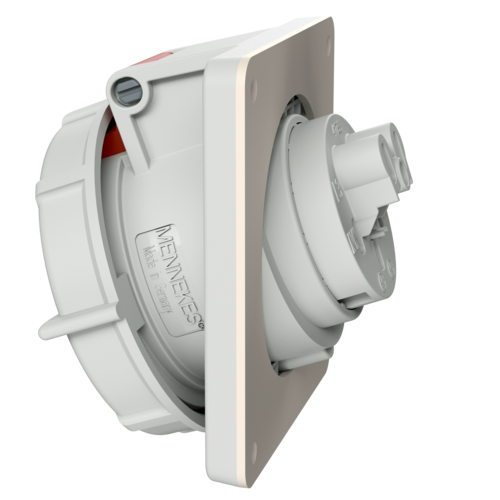

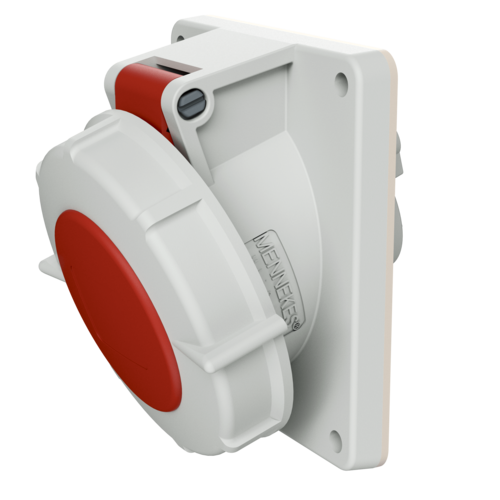

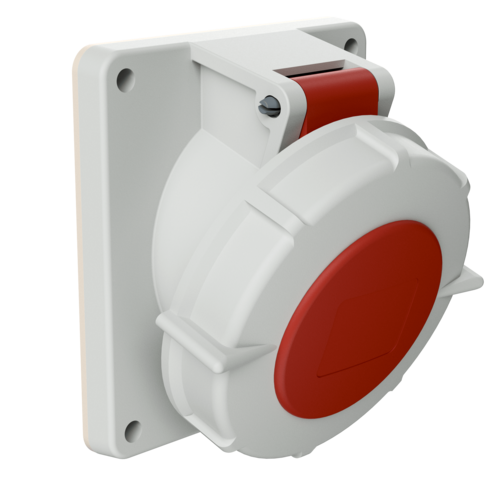

Panel mounted receptacle 1485

Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • 32 A receptacles optional fitted with auxiliary contact
  • Part no.1485
  • EAN4015394011460
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle 1485

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz

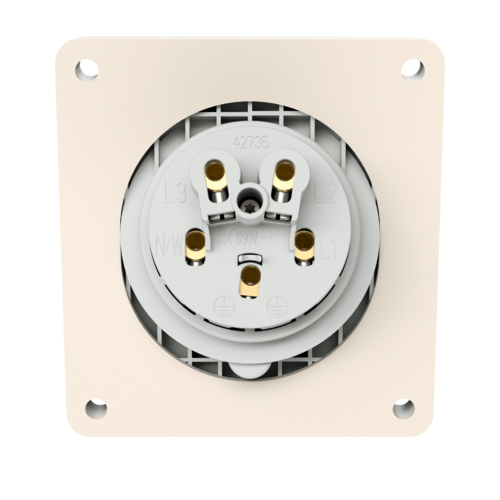

Connection technology Screw terminals
Contact standard
Protection type IP 67
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 237 g
Declaration of Conformity NL,Kema
CN,CQC
