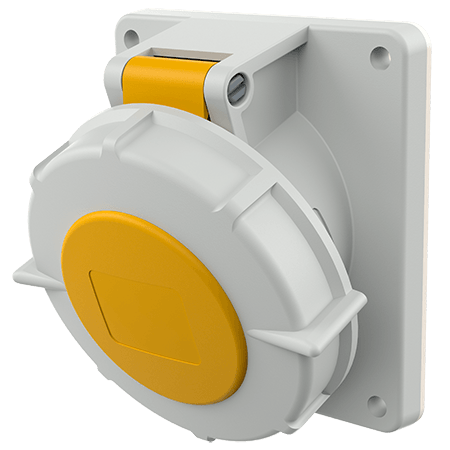

MENNEKES Panel mounted receptacle 1501

Panel mounted receptacle 1501

Ampere 16 A 32 A
  • screw terminals
  • 20° inclination
  • receptacles optional fitted with auxiliary contact
  • Part no.1501
  • EAN4015394011668
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Standard screw terminals

Screw terminals

Standard screw terminals

Read more

Technical specifications

Panel mounted receptacle 1501

Ampere 32 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 281 g
Certifications EAC

Datasheets & Downloads

Panel mounted receptacle 1501

Product infoPanel mounted receptacle 1501 PDF, 154 KB
Mounting instructionsPanel mounted receptacle 1501 PDF, 128 KB
Dimensional drawing portraitPanel mounted receptacle 1501 PNG, 99 KB
Dimensional drawing landscape formatPanel mounted receptacle 1501 PNG, 100 KB
